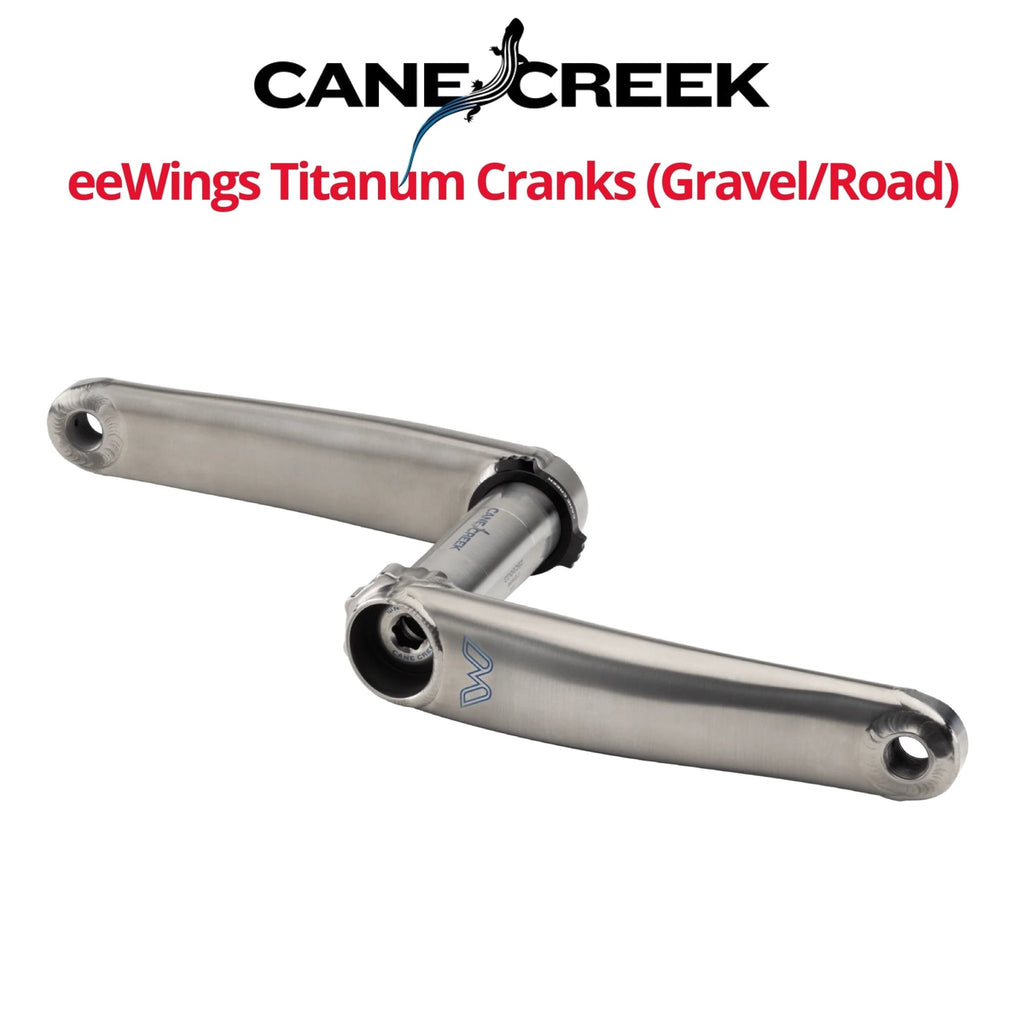

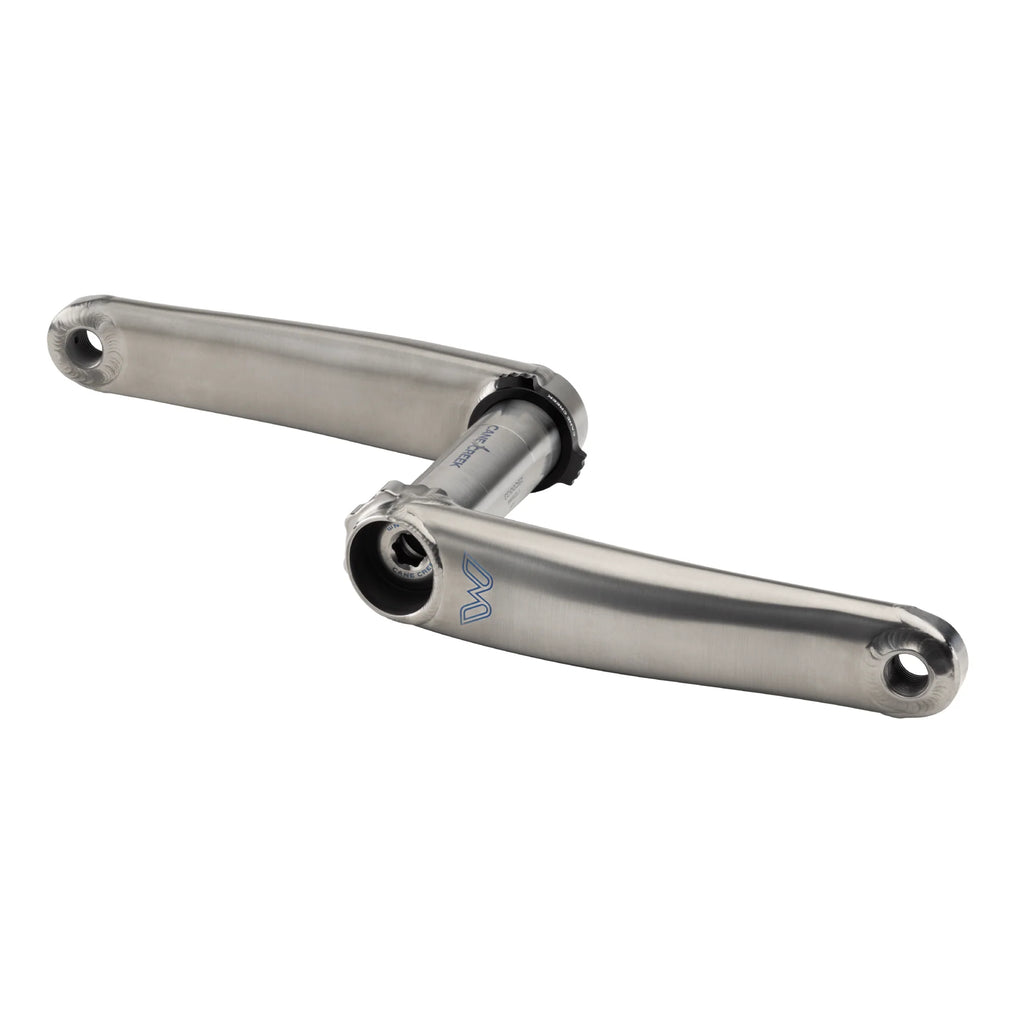

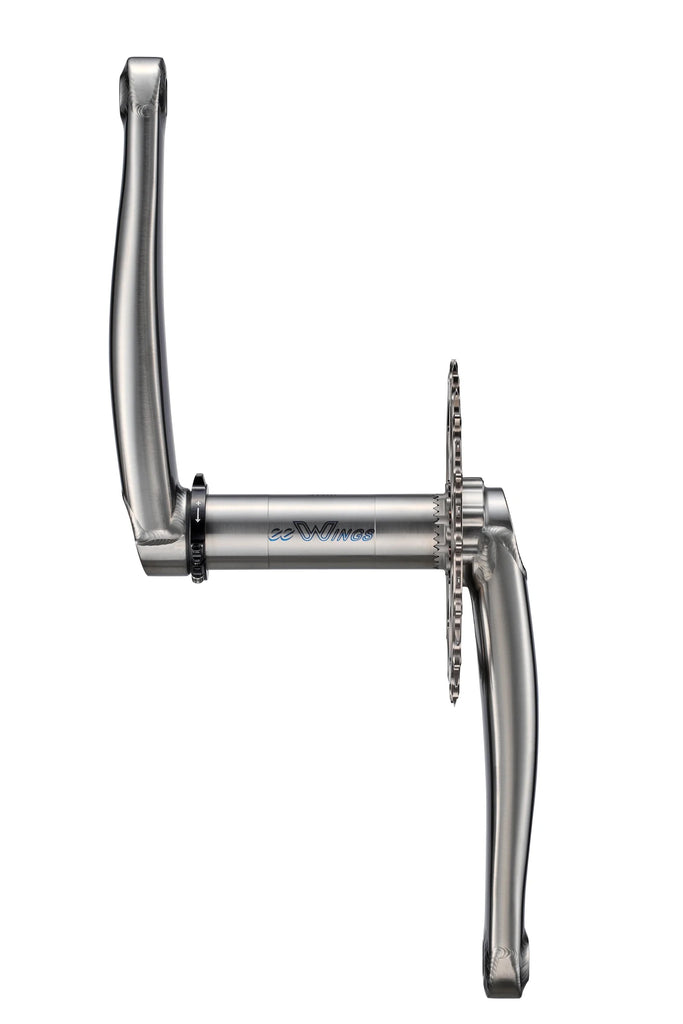

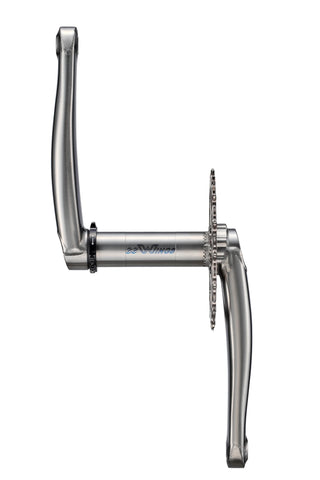

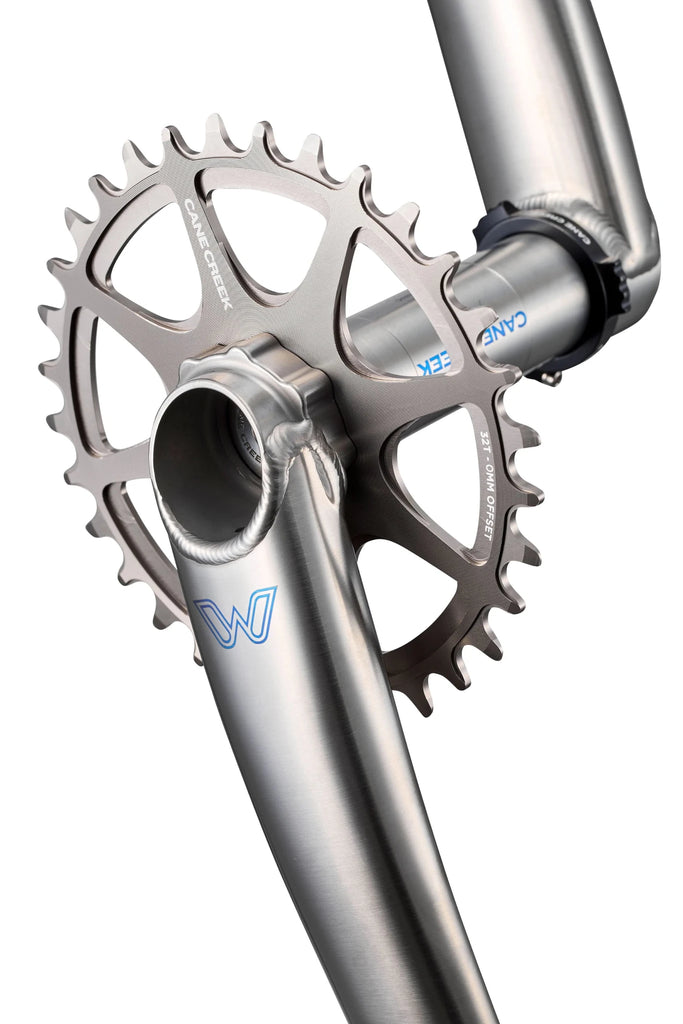

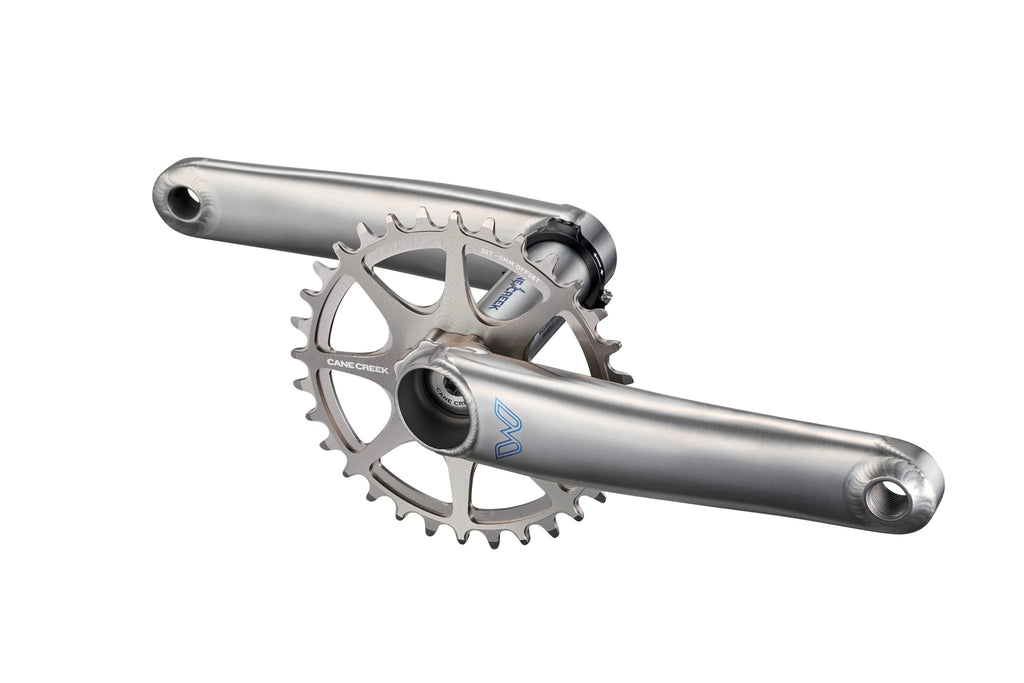

The Cane Creek eeWings Gravel/Road Titanium Cranks are virtually indestructible and built to outlast anything you bolt them to, from a lightweight gravel race machine to a loaded adventure rig or a fast road bike. They are as light as carbon cranks but offer significantly more durability and impact resistance, along with industry-leading power transfer. When other cranks separate, bend, break, or simply fade, eeWings are Ageless.

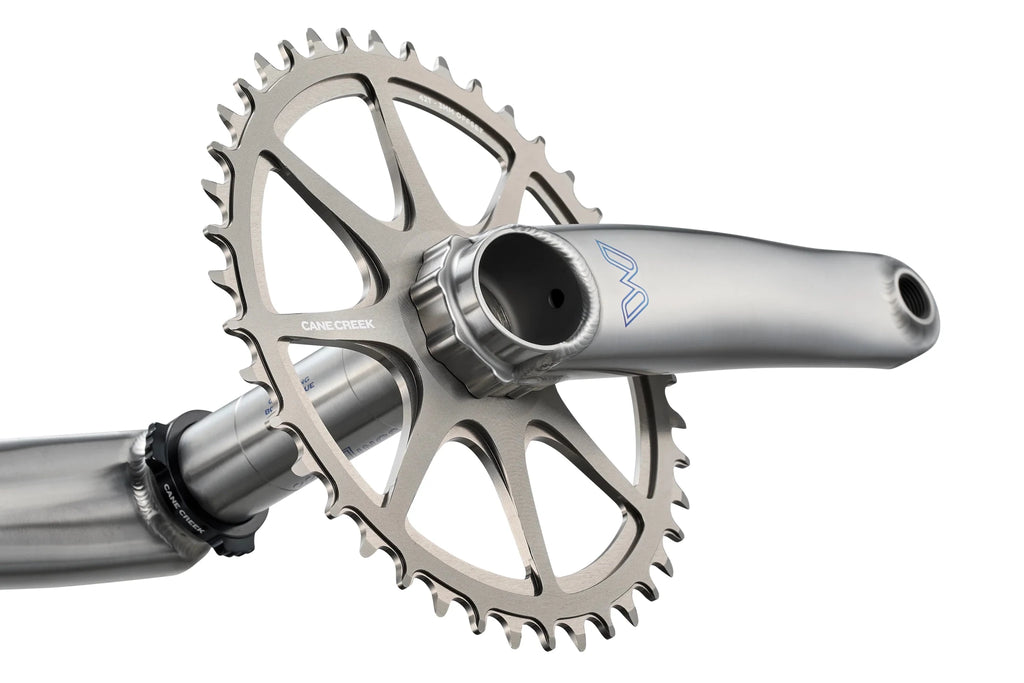

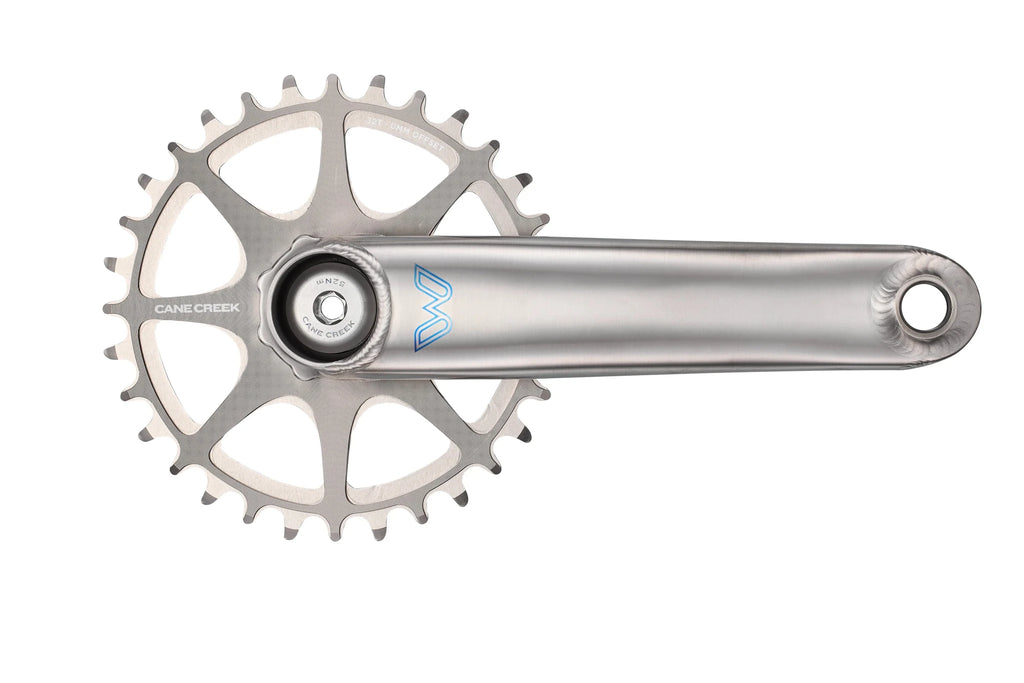

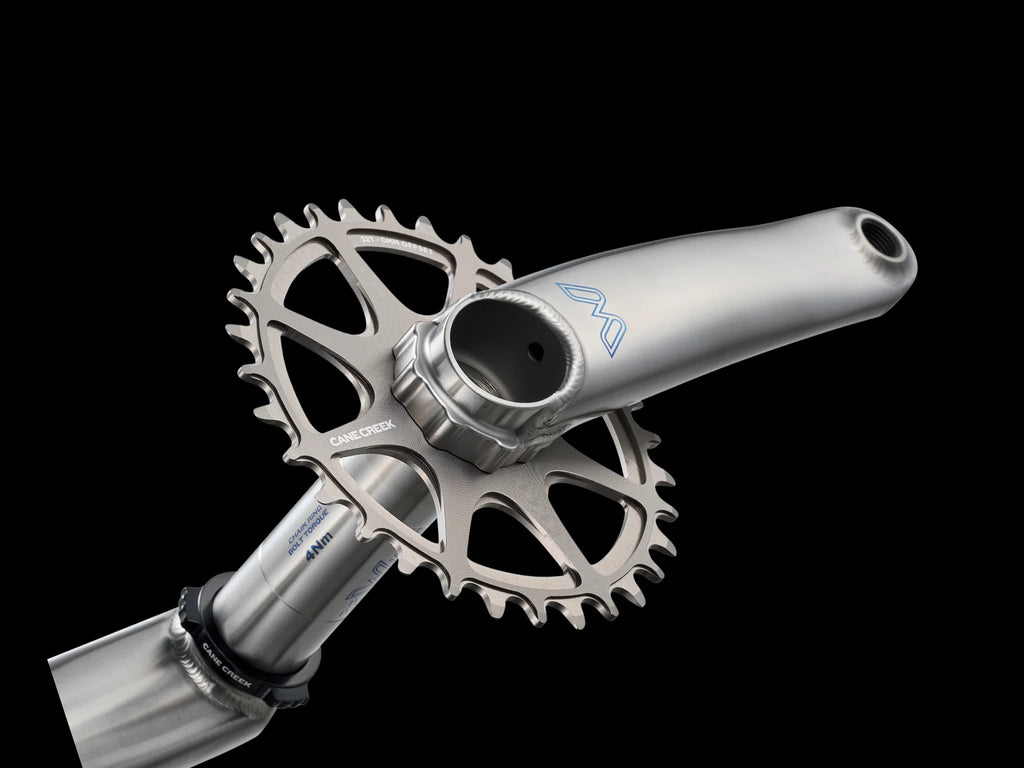

The second generation eeWings now use the SRAM 8-bolt direct mount chainring interface, opening up compatibility with modern 12 and 13 speed drivetrains and 8-bolt power meters. Using Cane Creek Chainring Spiders, they are also compatible with Shimano GRX, Dura-Ace 9200, and Ultegra 8100 chainrings. An oversized, ultra-friendly 8mm stainless steel fixing bolt and increased ground clearance round out the update, and every set is backed by a limited lifetime warranty.
________
Nothing Is Stiffer, Lighter, and Stronger:
At just 398g (165mm), eeWings Gravel are lighter than most carbon cranks while offering far more strength and reliability. They have been independently tested and confirmed to have one of the highest stiffness-to-weight ratios of any crank in the world. In a 2023 test by Fair Wheel Bikes, eeWings were found to be the stiffest of 15 manufacturers tested, with the lowest average deflection. That stiffness means more of your pedaling power goes straight to the rear wheel, making your bike more efficient and responsive.
________

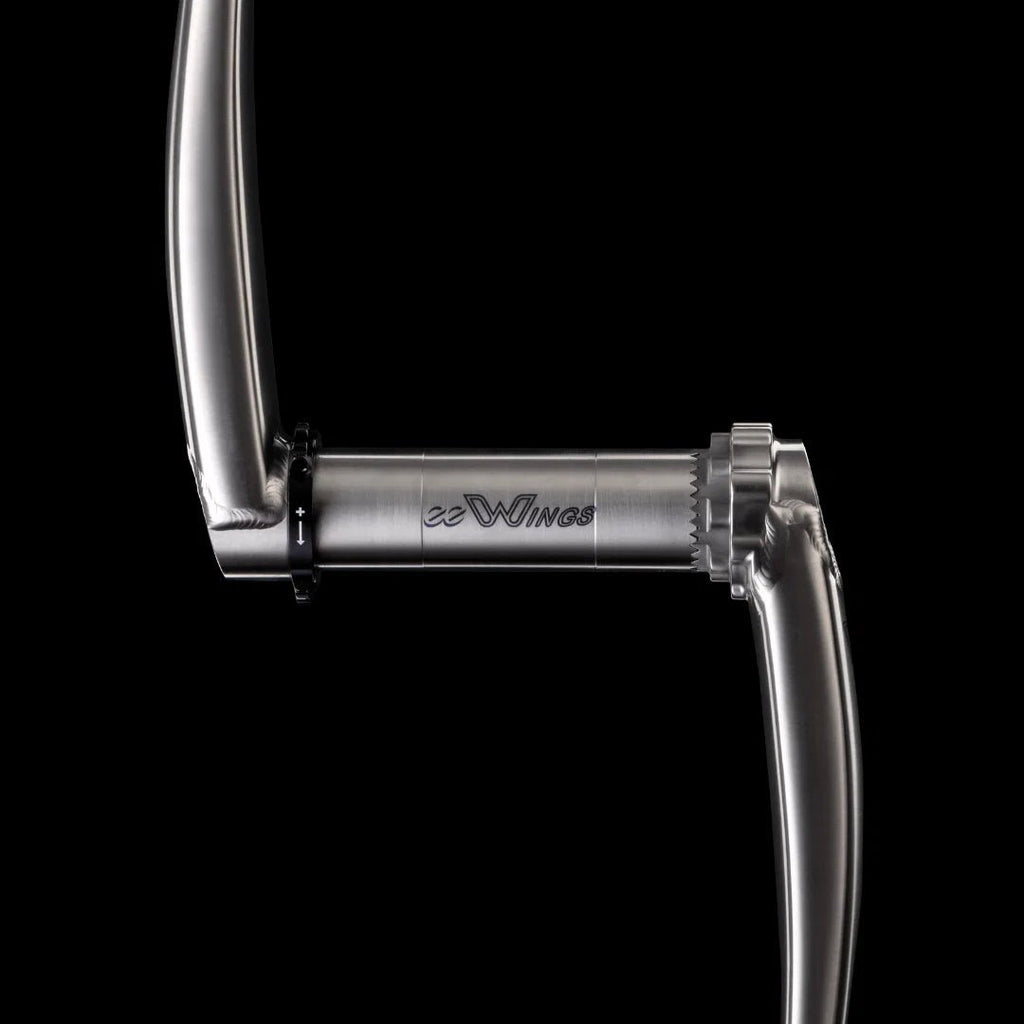

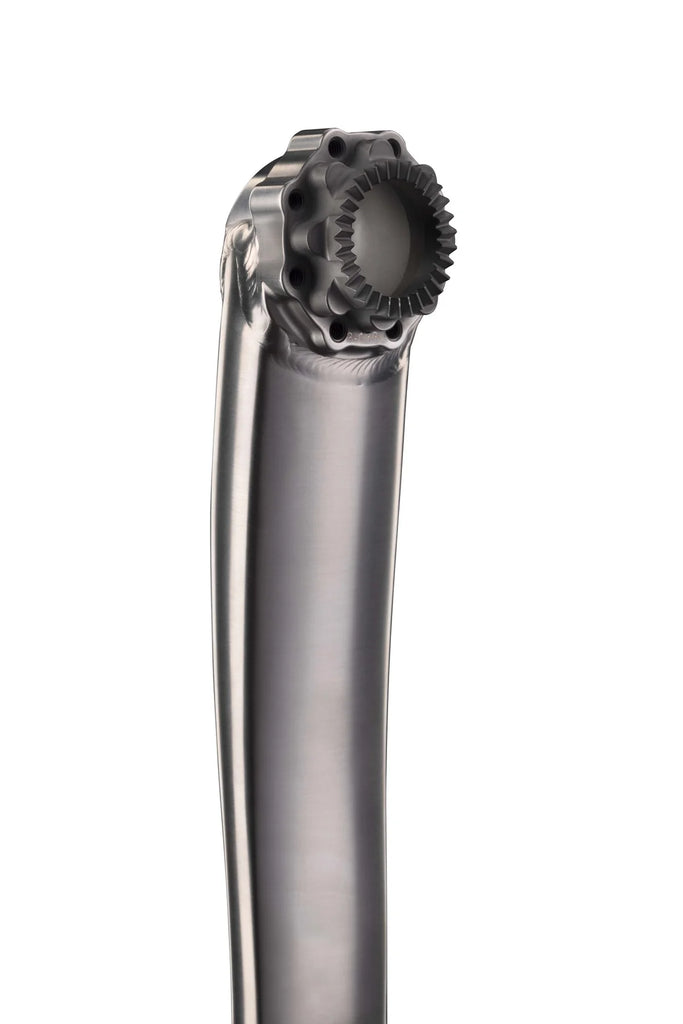

Hirth Joint and CNC Preloader:
The Hirth joint is compact and lightweight, minimizing overlapping and redundant material while maintaining incredible torsional rigidity with very few parts. Precision machined from 6/4 titanium and secured with a single oversized stainless steel fixing bolt, it delivers the most direct power transfer possible. eeWings also include a fully machined 7075 aluminum preloader with a titanium pinch bolt for precisely setting bottom bracket bearing preload and ensuring a perfect fit with your frame.
________
Features:
- 100% titanium construction: the highest strength-to-weight material on Earth

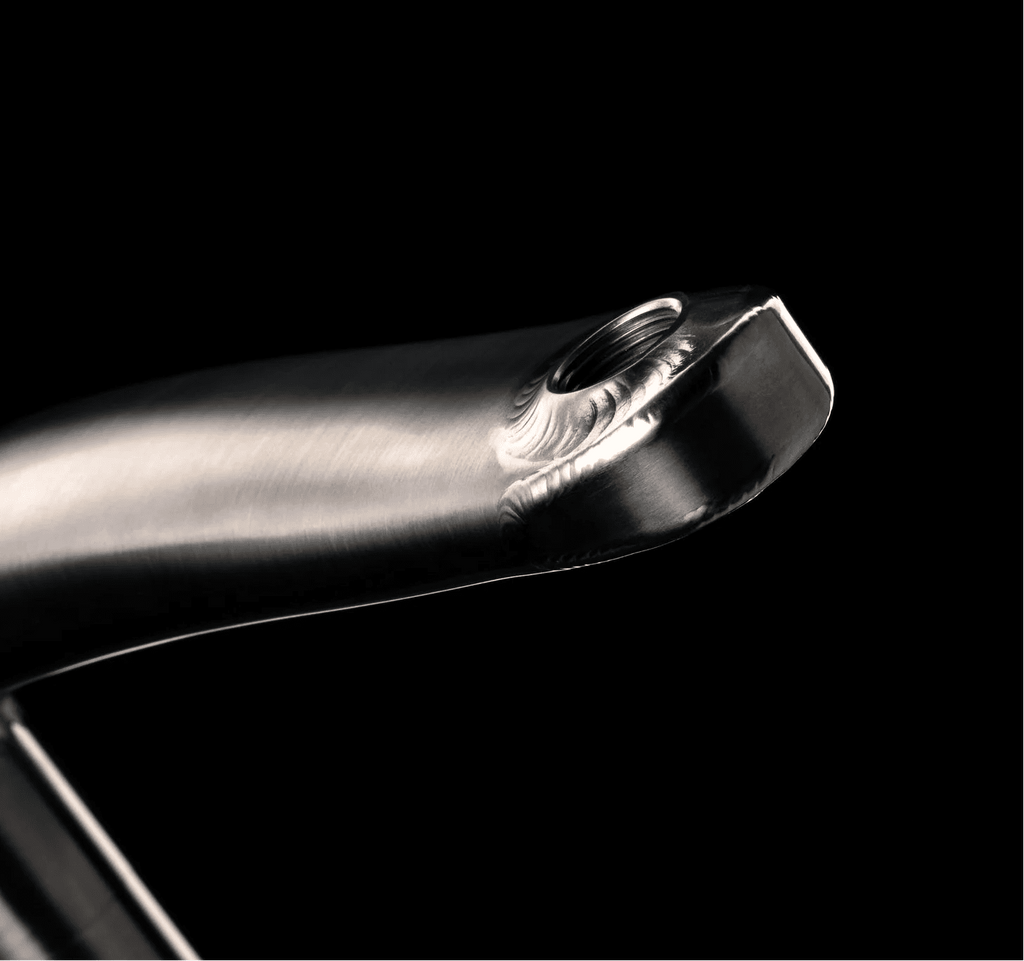

- Hand-welded arms that cannot come unbonded or delaminate
- Refinishable brushed finish: renew by hand with a Scotch-Brite pad
- SRAM 8-bolt direct mount chainring interface, compatible with 8-bolt spiders and power meters

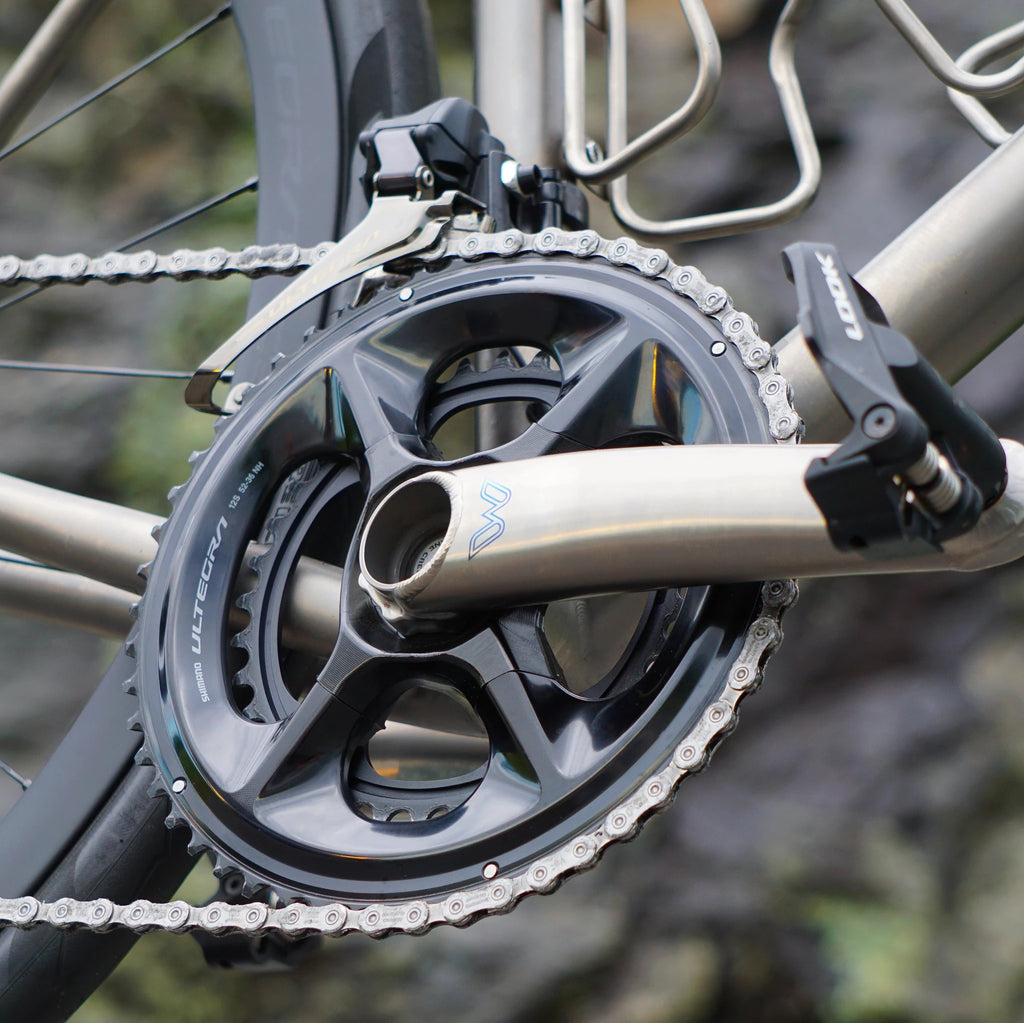

- Compatible with Shimano GRX, Dura-Ace 9200, and Ultegra 8100 chainrings using Cane Creek Chainring Spiders
- Compatible with SRAM DUB WIDE chainlines (with a 3mm offset chainring)
- Stainless steel 8mm crank fixing bolt and chainring bolts
- CNC machined 7075 aluminum preloader with titanium pinch bolt included
- No pedal washers required
- Limited lifetime warranty
________
Specifications:
| MATERIALS | Butted 3/2.5 titanium arms with CNC 6/4 titanium spindle and Hirth joint |
|---|---|
| CRANK LENGTH | 165mm, 170mm, 172.5mm |
| Q FACTOR | 160mm |
| SPINDLE | 30mm |
| MAX USABLE SPINDLE WIDTH | 92.5mm |
| CHAINRING INTERFACE | SRAM 8-Bolt Direct Mount |
| HARDWARE | Stainless steel 8mm crank fixing bolt and chainring bolts |
| PRELOAD ADJUSTMENT | Cane Creek CNC machined 7075-T6 aluminum preloader |
| WEIGHT | 398g (165mm) |
| WARRANTY | Lifetime |
________
Compatibility:
- Fits any modern road bike bottom bracket standard using a 30mm spindle bottom bracket
- Works with 68mm threaded (BSA and T47 external), 86.5mm threaded (T47 internal), 68mm press-fit (BB30 and PF30), and 86.5mm press-fit (PF41) using the appropriate Cane Creek 30mm bottom bracket
- Chainring and bottom bracket sold separately
