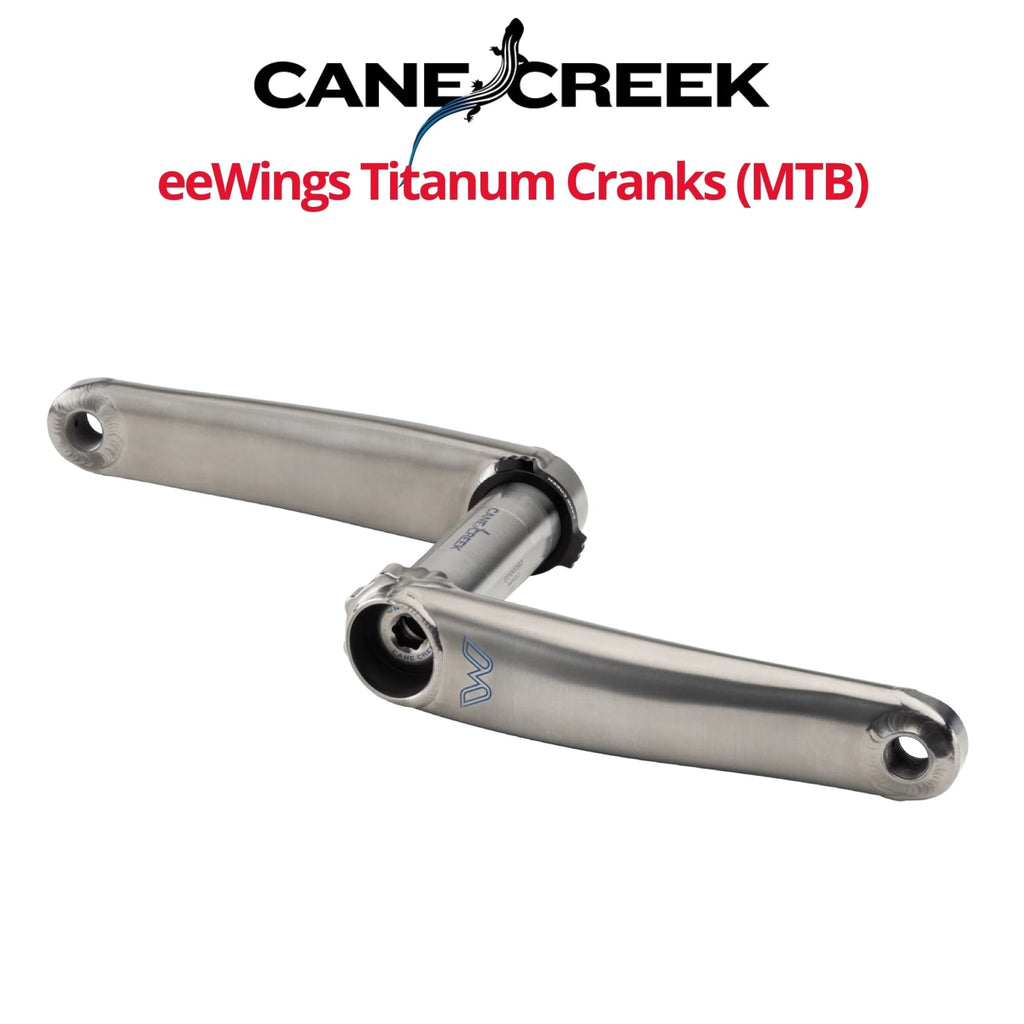

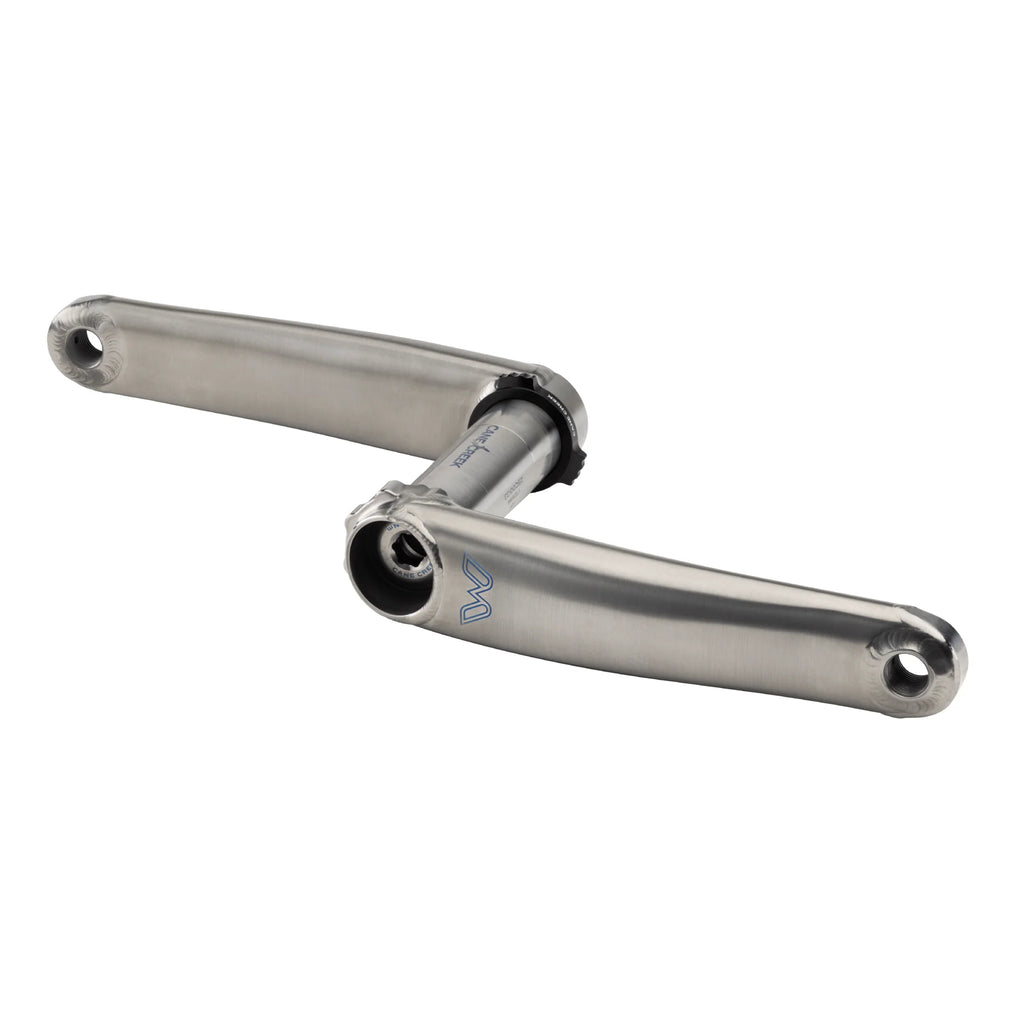

The Cane Creek eeWings Mountain Titanium Cranks are virtually indestructible and built to outlast anything you bolt them to, from a lightweight XC race bike to a heavy-hitting trail or enduro rig. They are as light as carbon cranks but offer significantly more durability and impact resistance, along with industry-leading power transfer. When other cranks separate, bend, break, or simply fade, eeWings are Ageless.
The second generation eeWings now use the SRAM 8-bolt direct mount chainring interface, opening up compatibility with modern 12 and 13 speed drivetrains, 8-bolt power meters, and SRAM Eagle Transmission. An oversized, ultra-friendly 8mm stainless steel fixing bolt and increased ground clearance round out the update, and every set is backed by a limited lifetime warranty.
________
Nothing Is Stiffer, Lighter, and Stronger:
Starting at just 398g, eeWings are lighter than most carbon cranks while offering far more strength and reliability. They have been independently tested and confirmed to have one of the highest stiffness-to-weight ratios of any crank in the world. In a 2023 test by Fair Wheel Bikes, eeWings were found to be the stiffest of 15 manufacturers tested, with the lowest average deflection. That stiffness means more of your pedaling power goes straight to the rear wheel, making your bike more efficient and responsive.
________

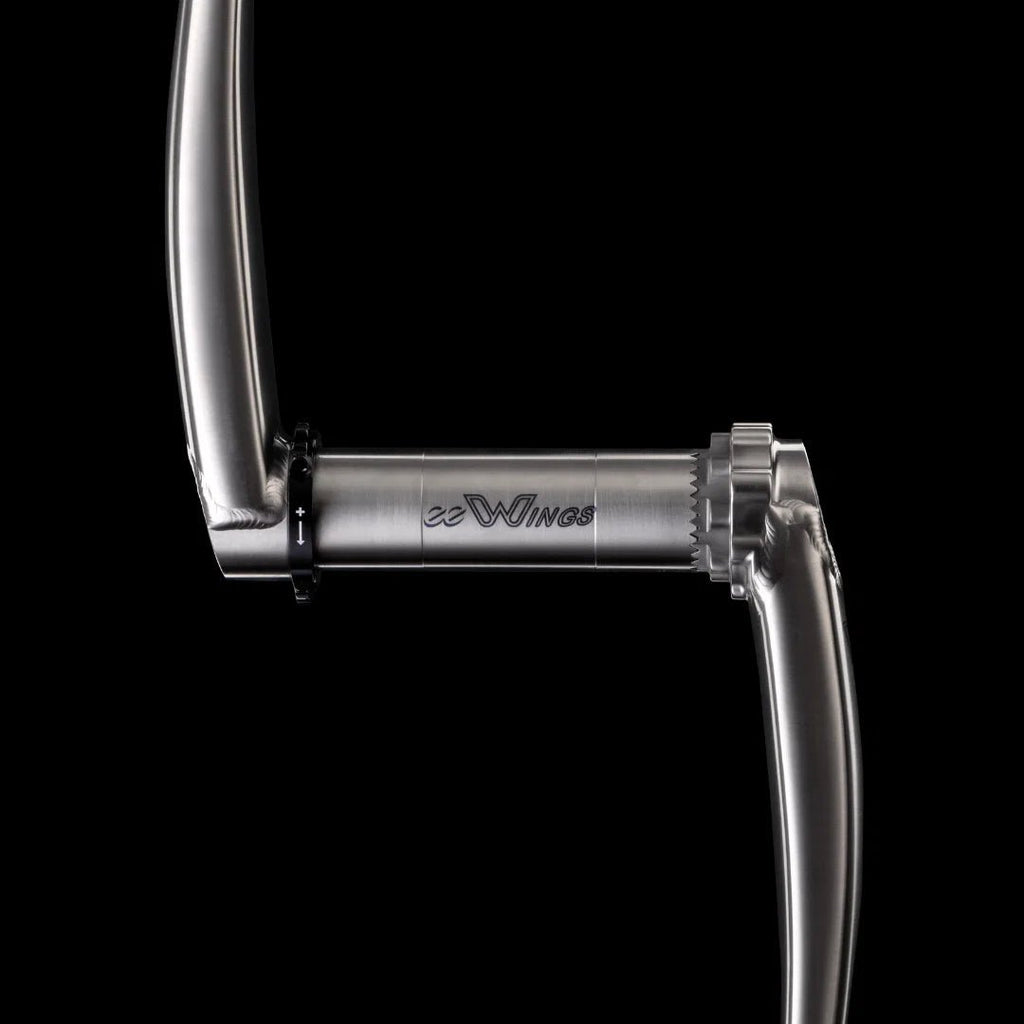

Hirth Joint and CNC Preloader:
The Hirth joint is compact and lightweight, minimizing overlapping and redundant material while maintaining incredible torsional rigidity with very few parts. Precision machined from 6/4 titanium and secured with a single oversized stainless steel fixing bolt, it delivers the most direct power transfer possible. eeWings also include a fully machined 7075 aluminum preloader with a titanium pinch bolt for precisely setting bottom bracket bearing preload and ensuring a perfect fit with your frame.
________
Features:
- 100% titanium construction: the highest strength-to-weight material on Earth

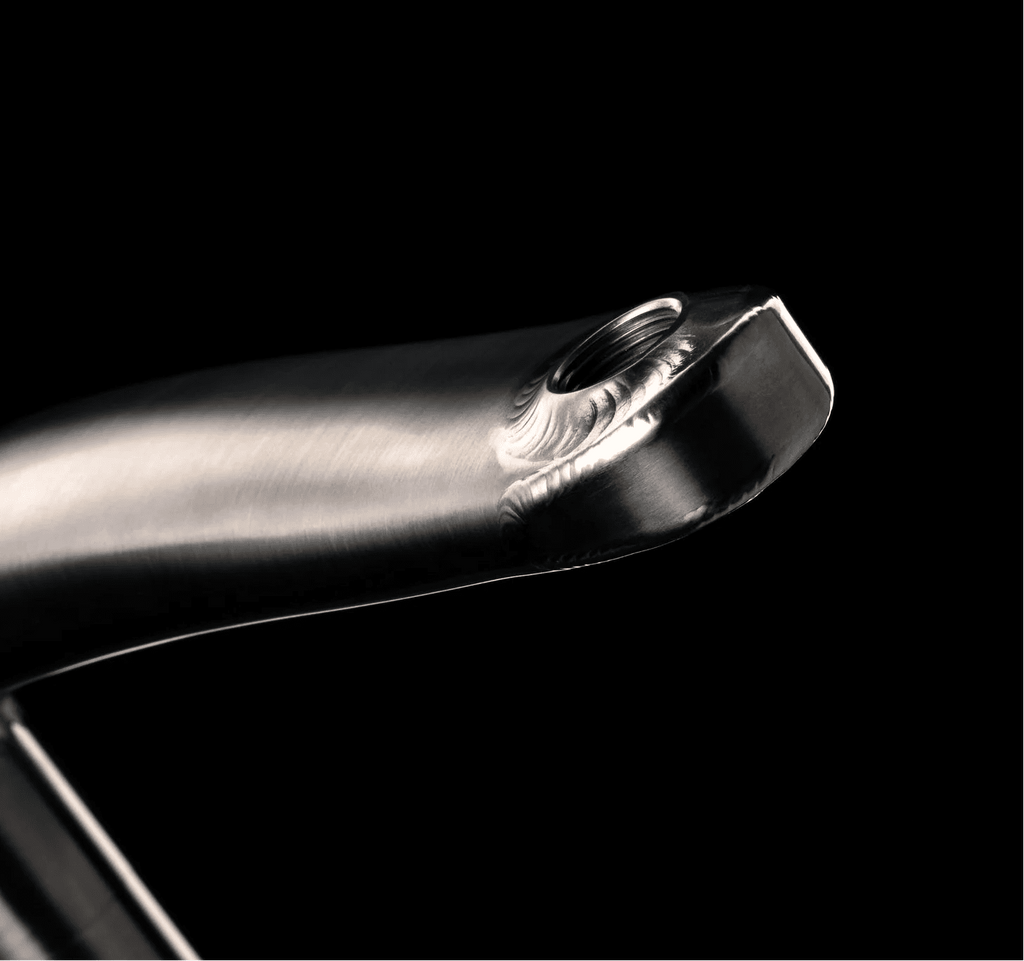

- Hand-welded arms that cannot come unbonded or delaminate

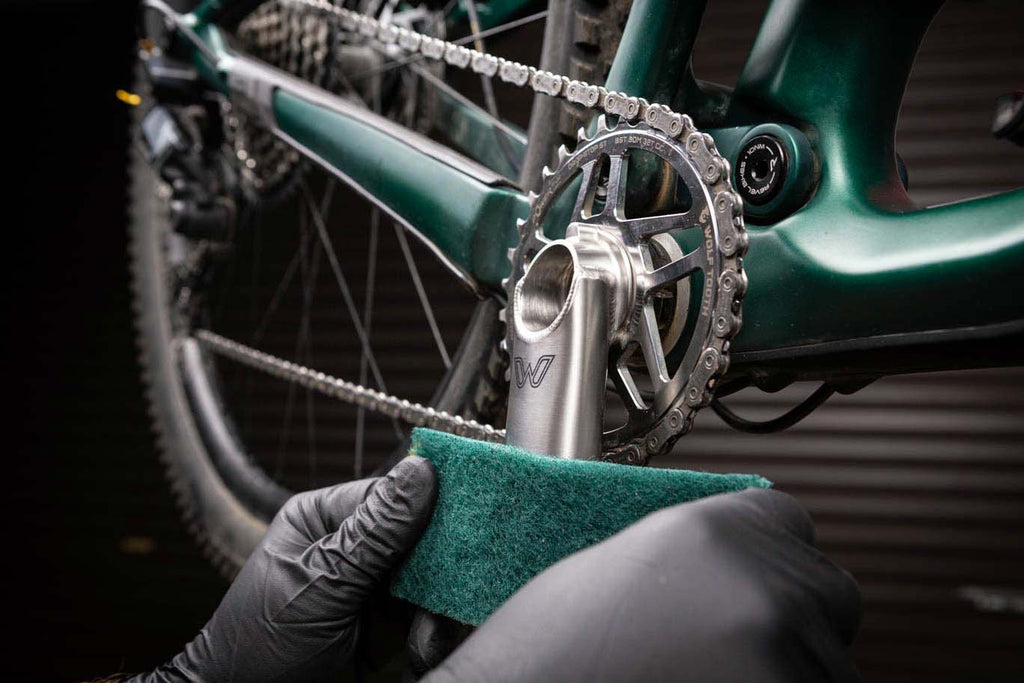

- Refinishable brushed finish: renew by hand with a Scotch-Brite pad

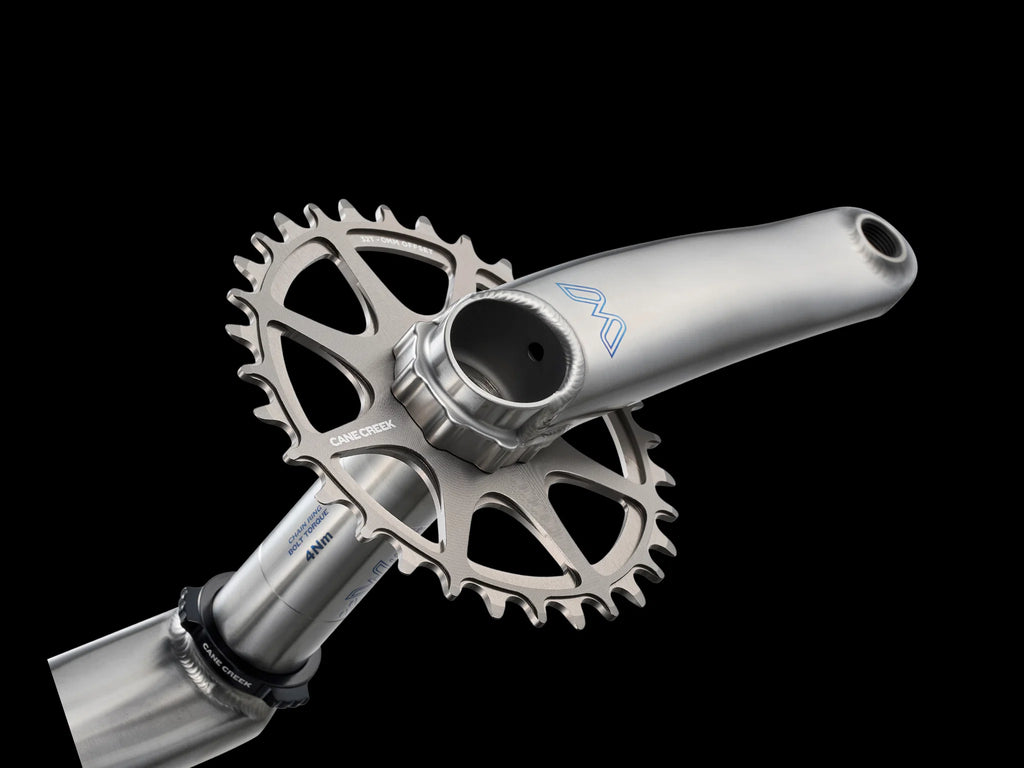

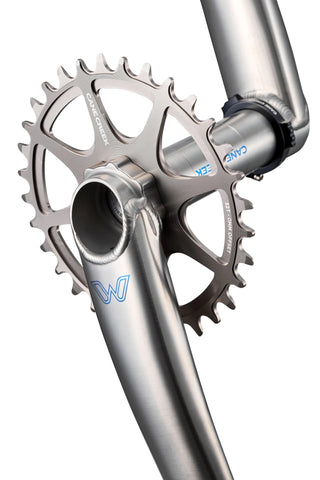

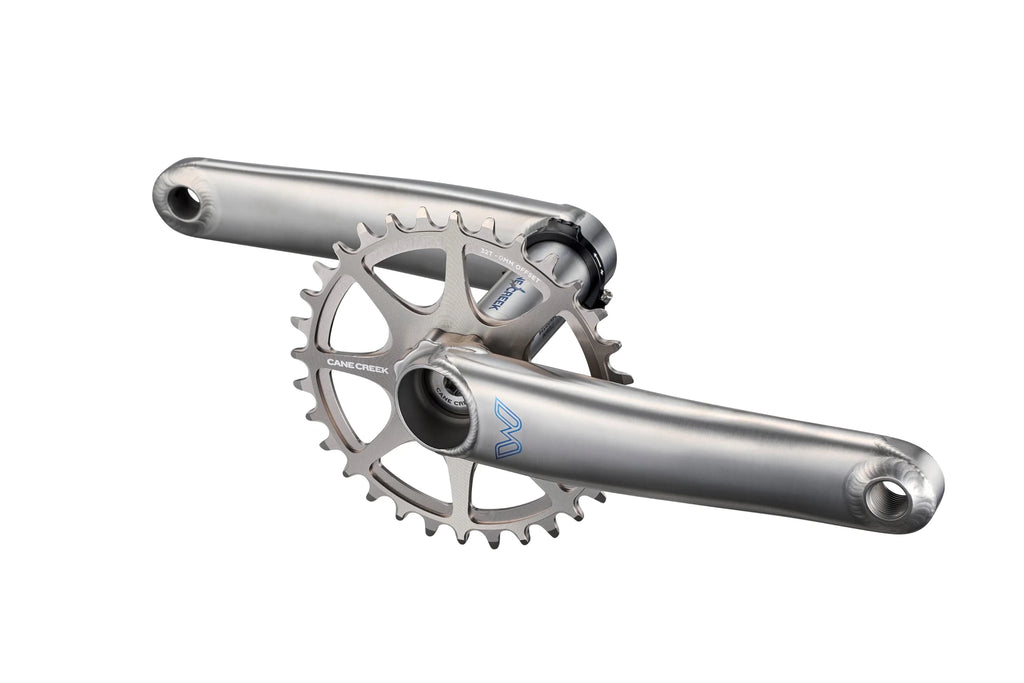

- SRAM 8-bolt direct mount chainring interface, compatible with 8-bolt spiders and power meters
- Compatible with SRAM Eagle Transmission and SRAM DUB WIDE chainlines (with a 0mm offset chainring)
- Compatible with Shimano 12-speed MTB drivetrains when paired with a Cane Creek chainring
- Stainless steel 8mm crank fixing bolt and chainring bolts
- CNC machined 7075 aluminum preloader with titanium pinch bolt included
- Fits most Superboost (157x12mm) frames, typically with a 0mm offset chainring
- Limited lifetime warranty
________
Specifications:
| MATERIALS | Butted 3/2.5 titanium arms with CNC 6/4 titanium spindle and Hirth joint |
|---|---|
| CRANK LENGTH | 160mm, 165mm, 170mm |

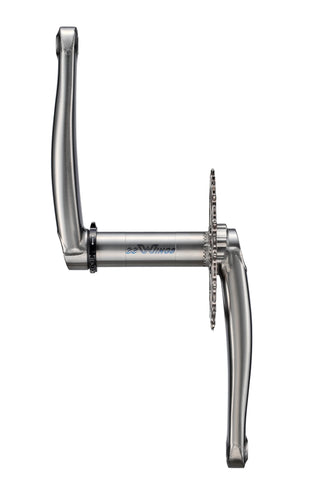

| Q FACTOR | 176mm |
| SPINDLE | 30mm |
| MAX USABLE SPINDLE WIDTH | 98.25mm |
| CHAINRING INTERFACE | SRAM 8-Bolt Direct Mount |
| HARDWARE | Stainless steel 8mm crank fixing bolt and chainring bolts |
| PRELOAD ADJUSTMENT | Cane Creek CNC machined 7075-T6 aluminum preloader |
| WEIGHT | From 398g |
| WARRANTY | Lifetime |
________
Compatibility:
- Compatible with 73mm and 92mm threaded shells, and 73mm, 89.5mm, and 92mm press-fit shells, using a 30mm spindle bottom bracket
- Works with BSA, T47 (internal and external), PF41, BB30, and PF30 using the appropriate Cane Creek 30mm bottom bracket
- Not compatible with 83mm threaded downhill shells or fat bikes
- Chainring and bottom bracket sold separately
