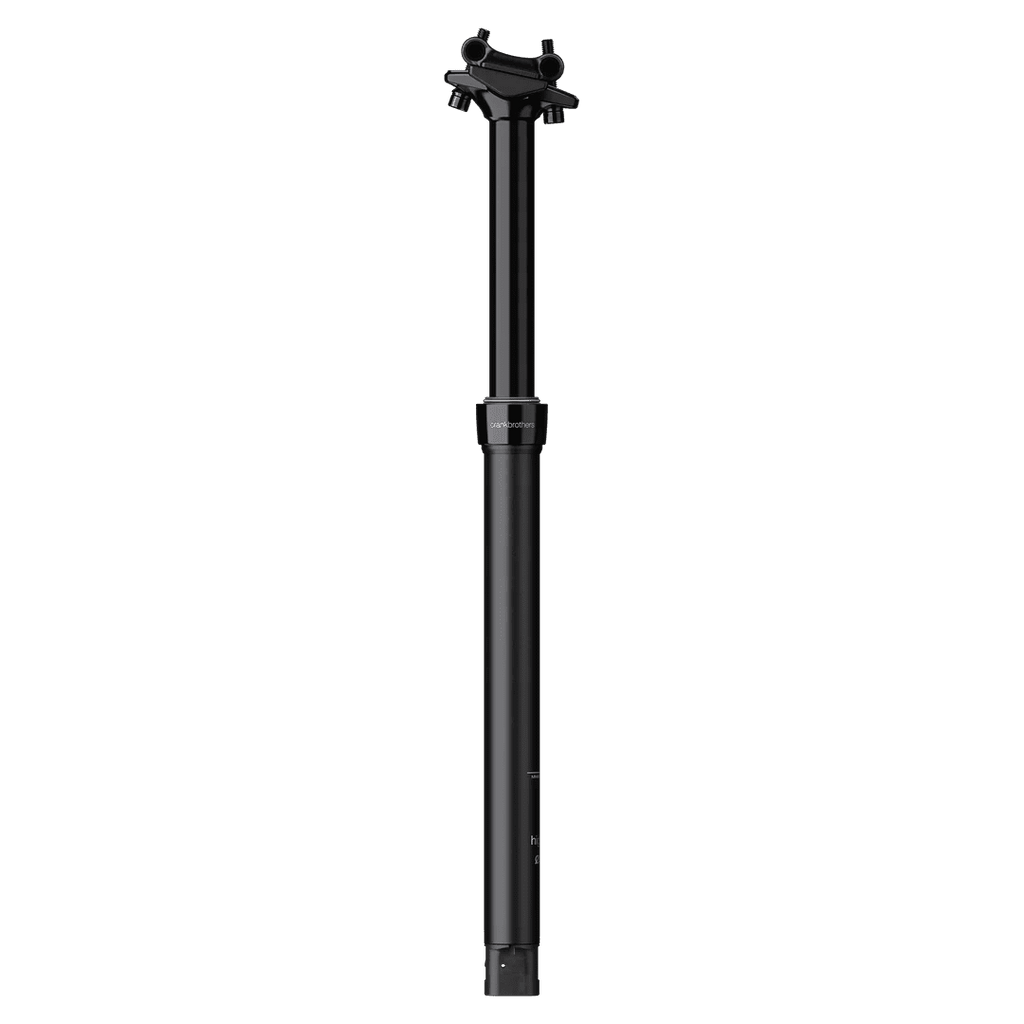

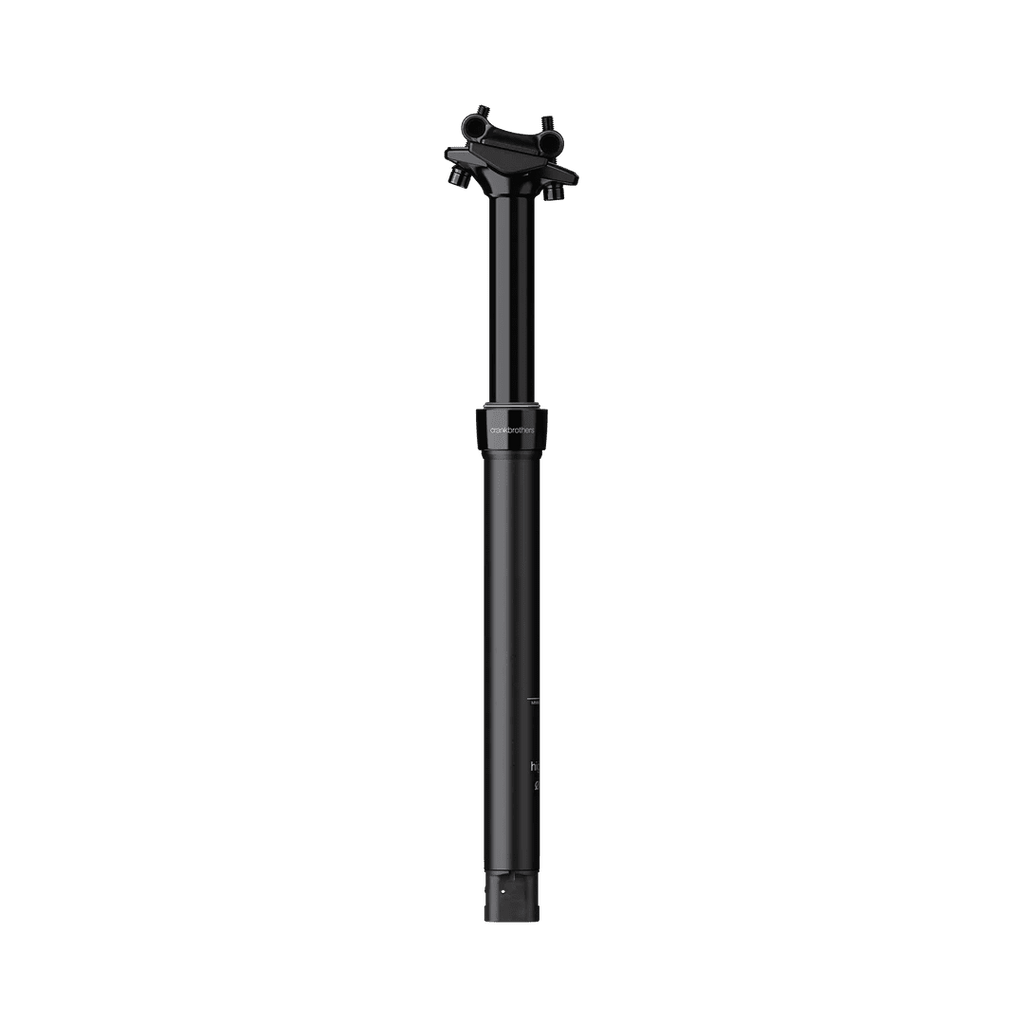

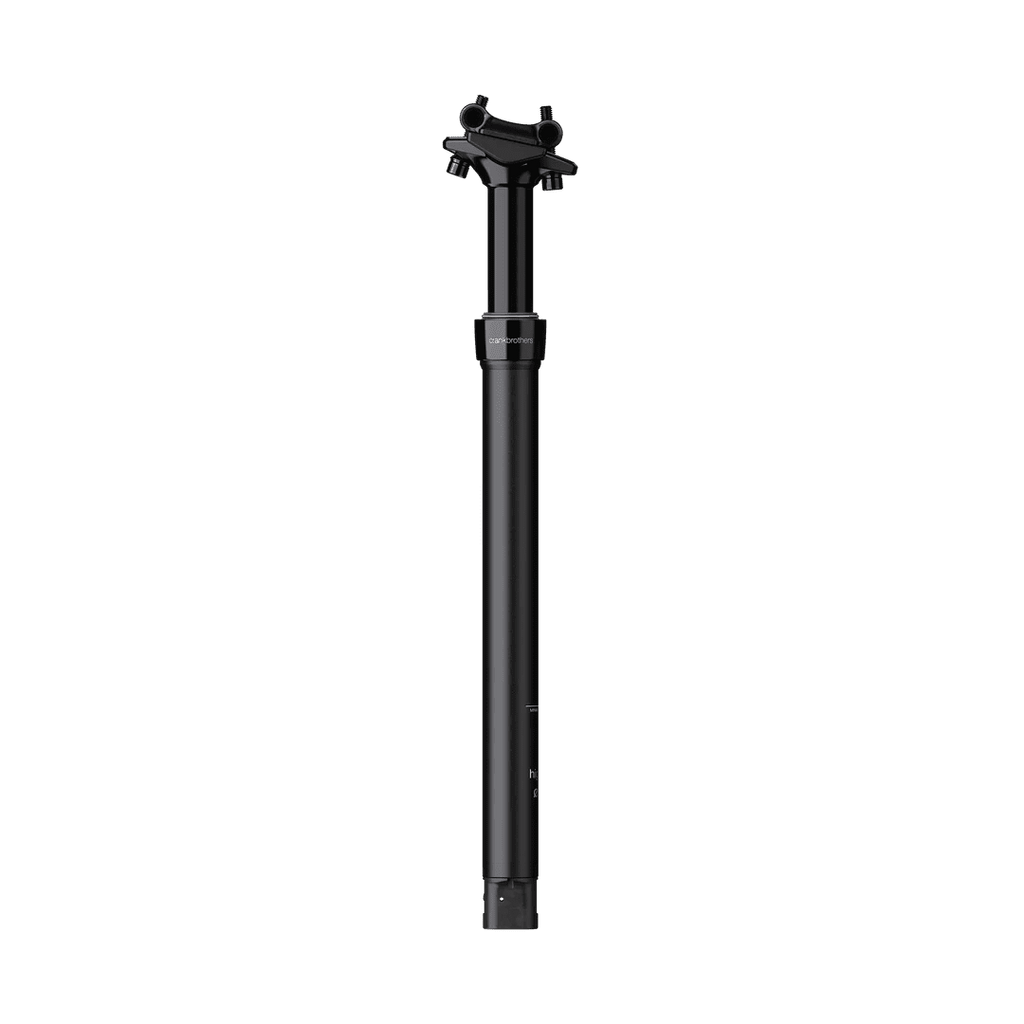

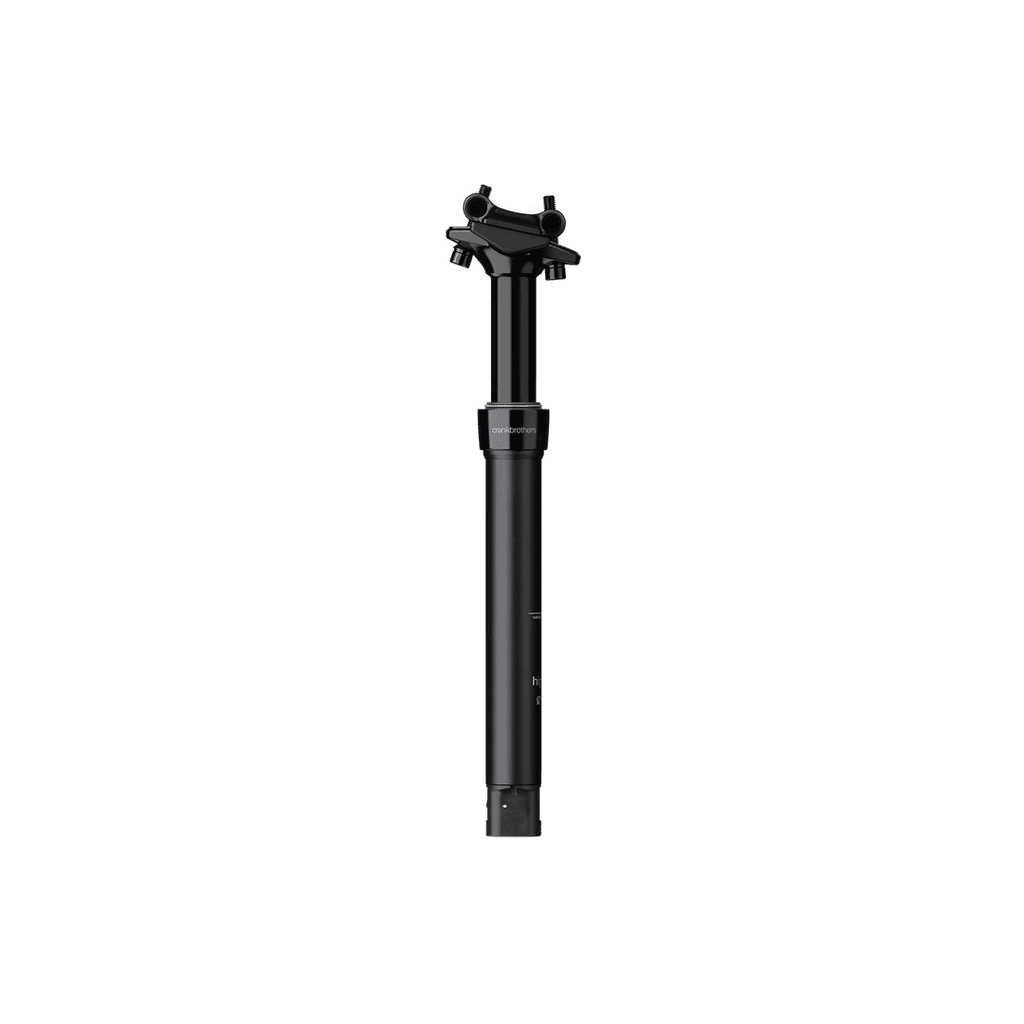

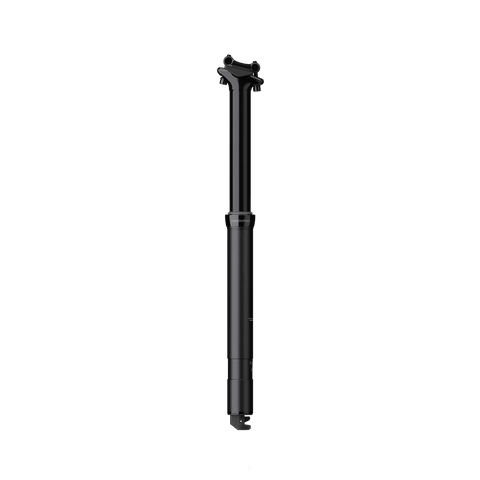

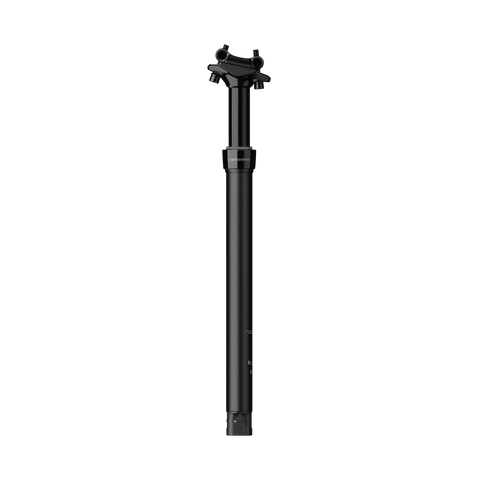

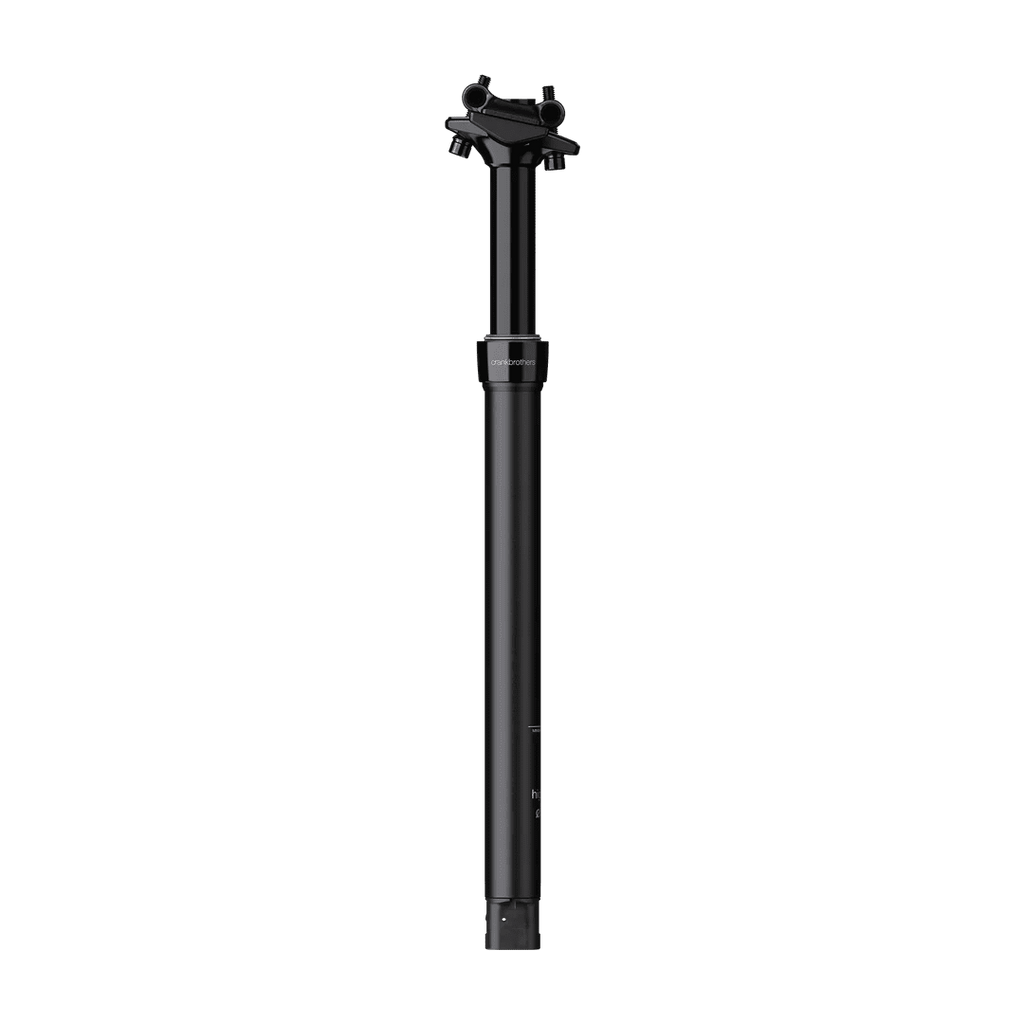

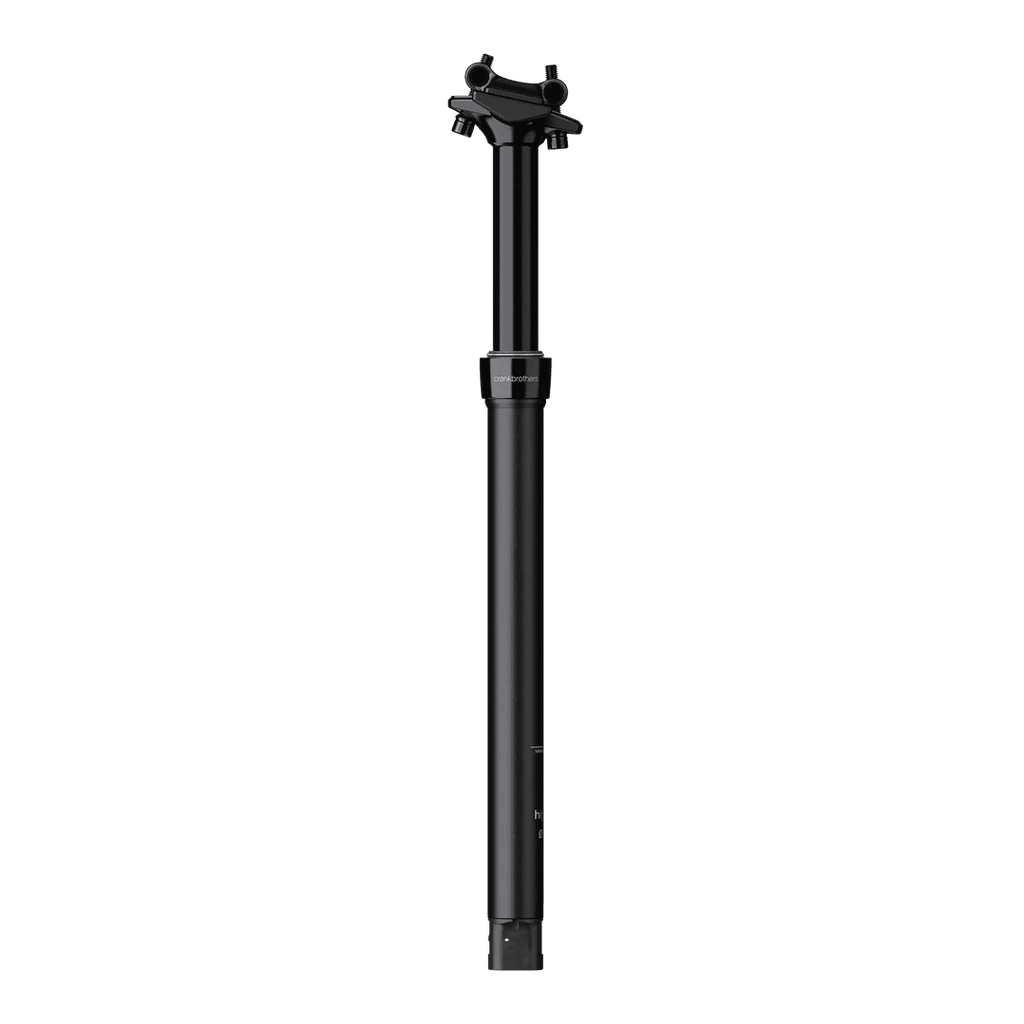

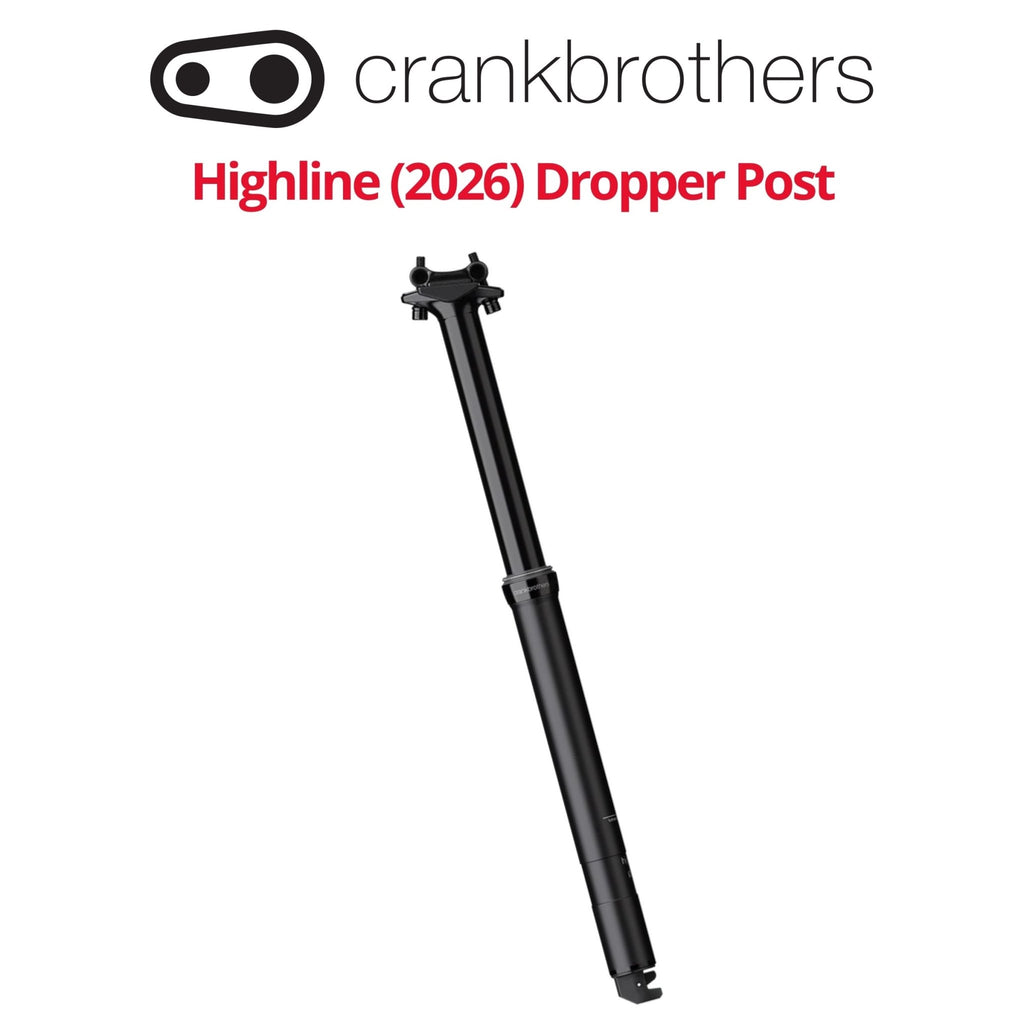

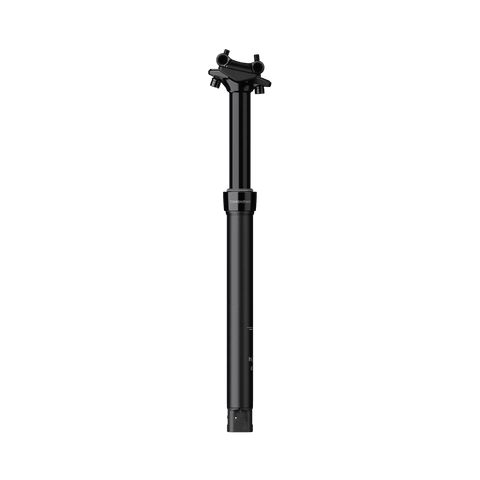

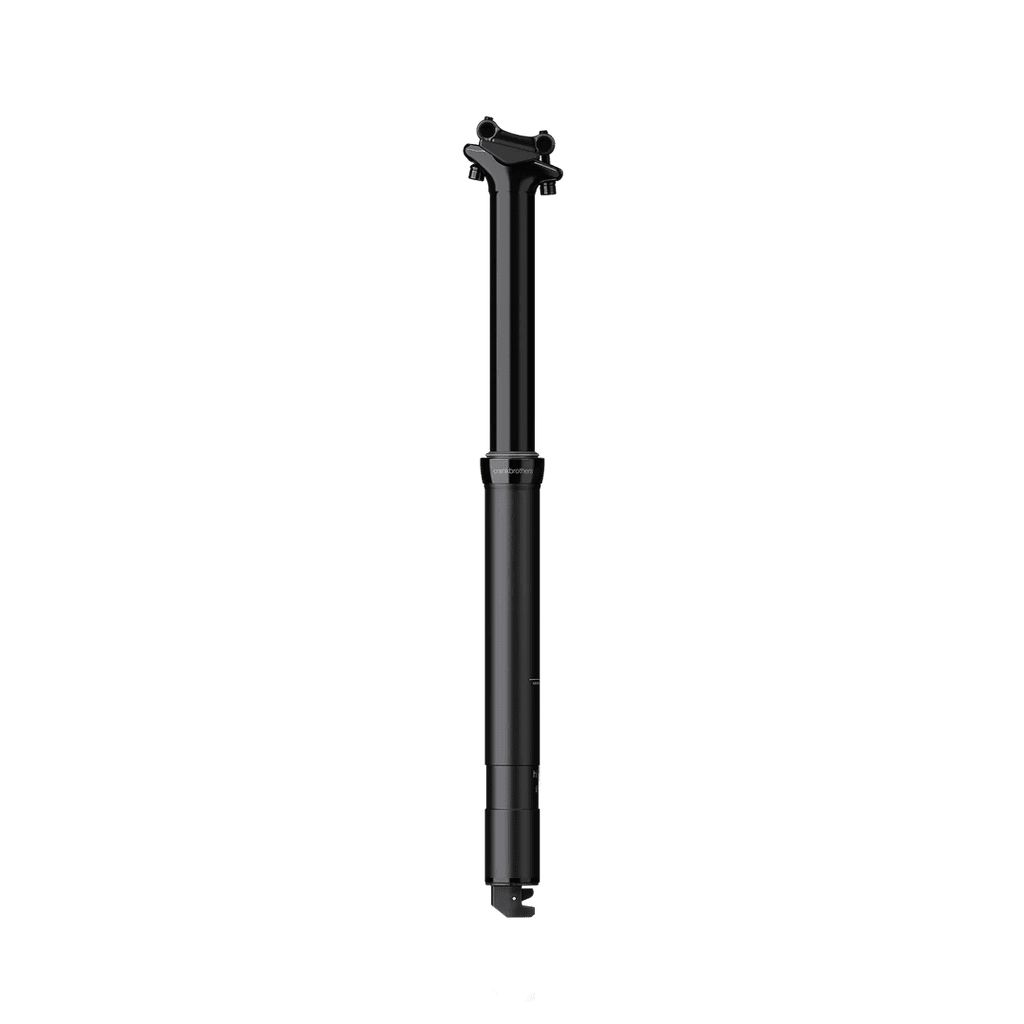

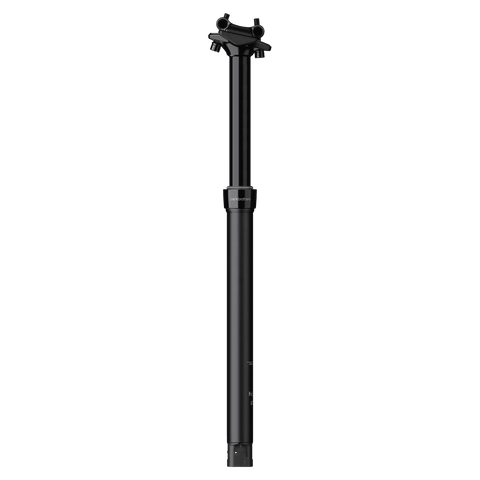

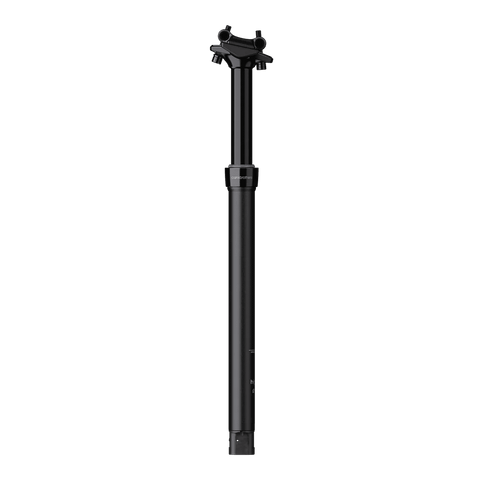

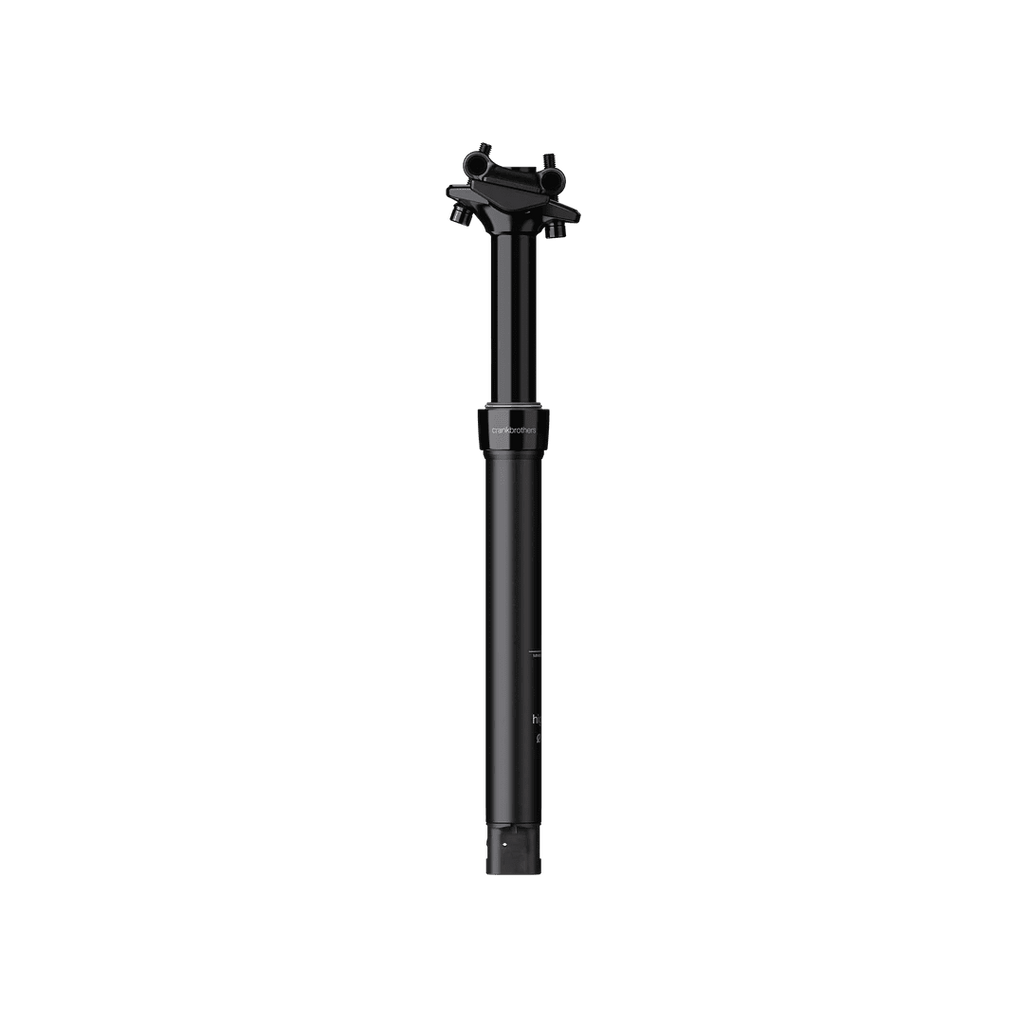

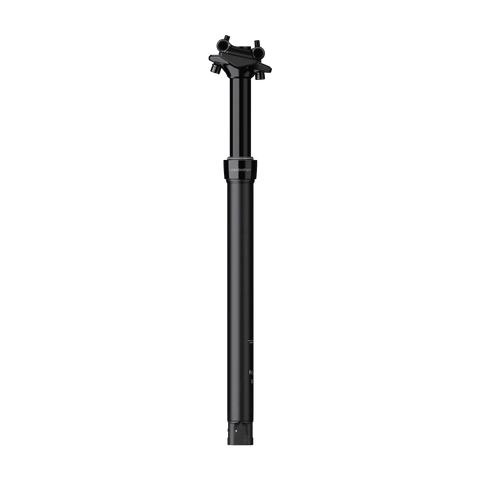

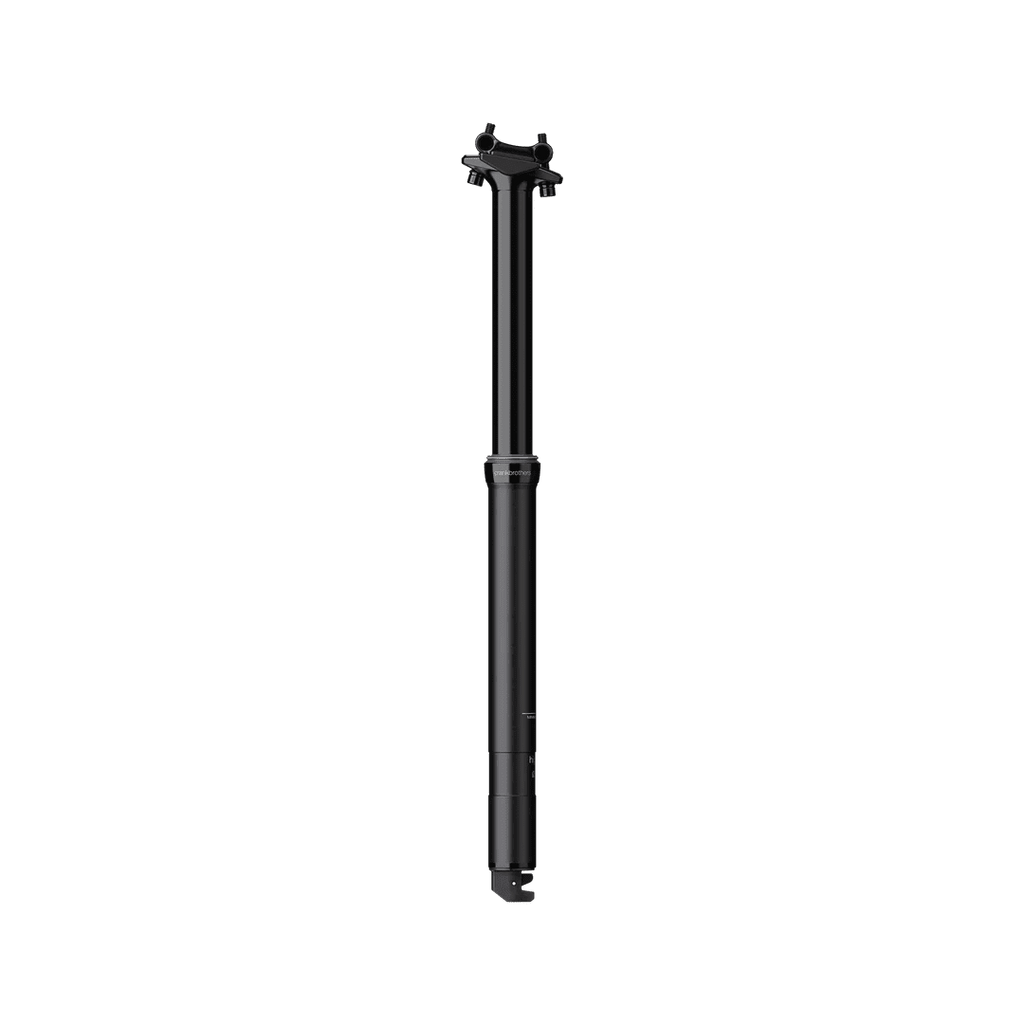

Crankbrothers Highline (2026) Dropper Post

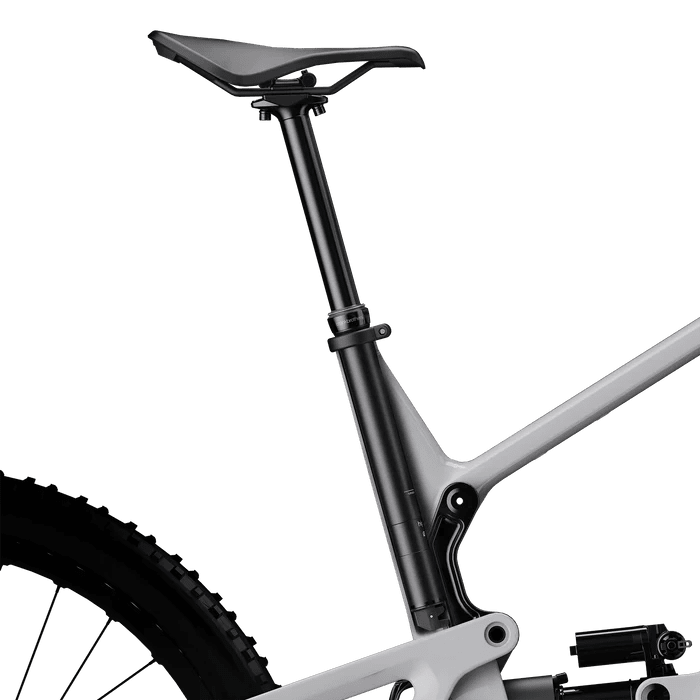

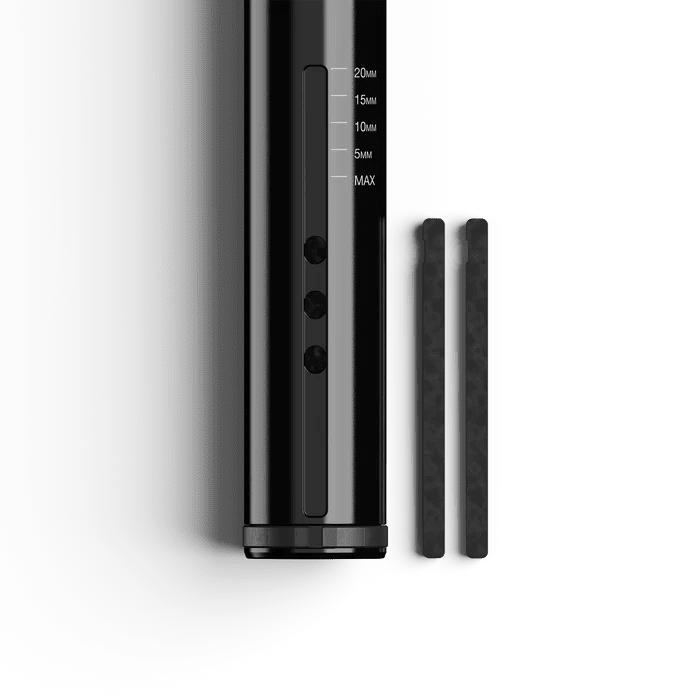

Crankbrothers Highline (2026) brings together the best features of the Crankbrothers dropper lineup in one streamlined post. A shorter insertion length and lower stack height improve frame compatibility, and adjustable travel lets you reduce the drop by up to 20mm in 5mm increments simply by repositioning the keys on the quill, with no extra parts needed.

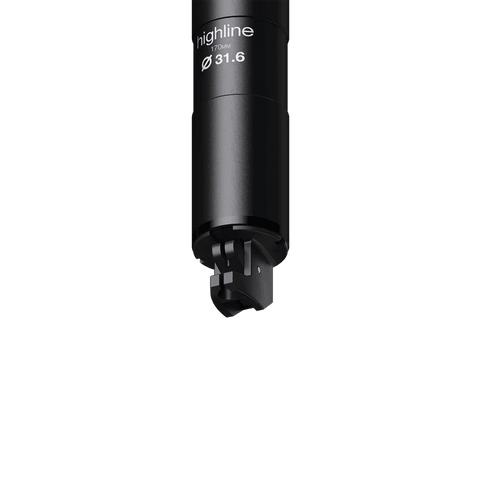

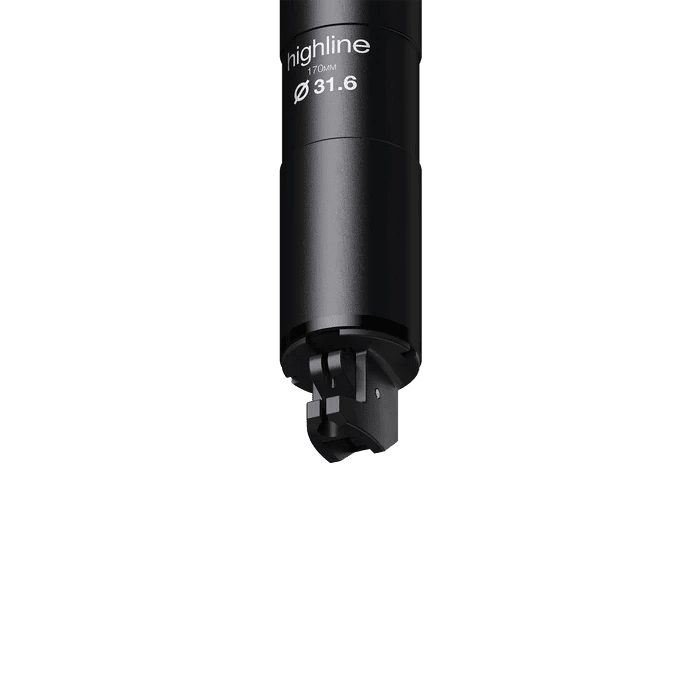

A lower profile actuator, nearly half the size of the one on the Highline 3 and Highline 7, delivers a lighter lever feel and a smoother return. The quick release 2-bolt head speeds up installation, and the emulsification cartridge provides a faster return. Backed by a 5-year warranty, the Highline is built for everything from XC to enduro.

________
Features:

• Adjustable travel (reduce by up to 20mm in 5mm increments)

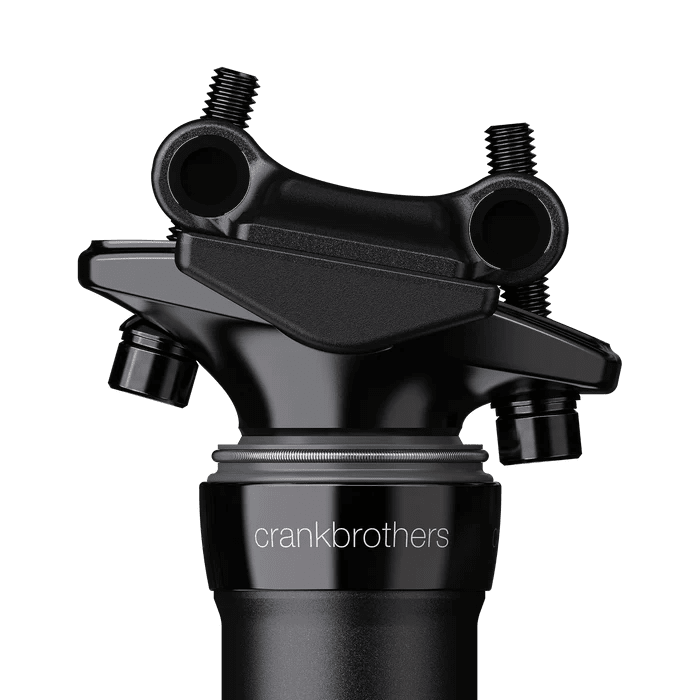

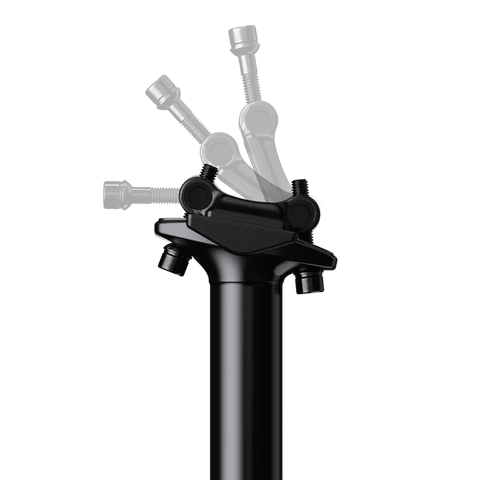

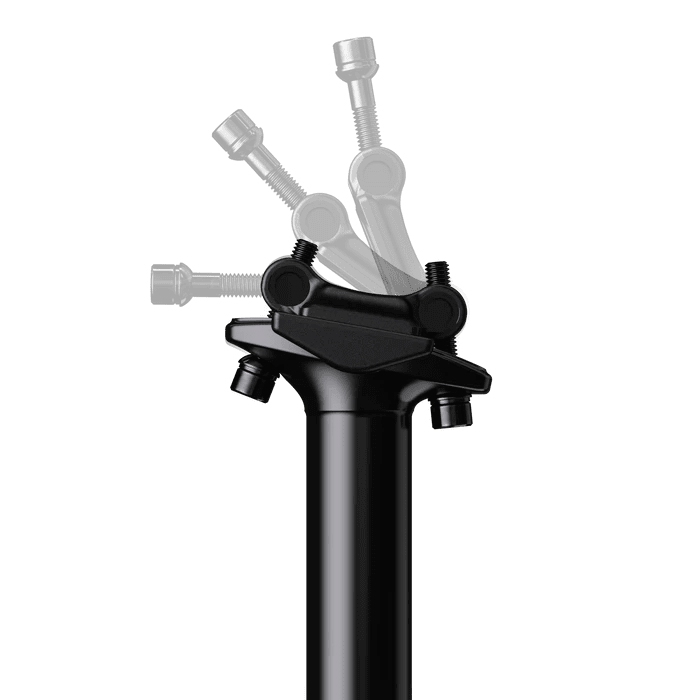

• 2-bolt quick connect head
• Emulsification cartridge (gas and oil mixed)
• Internal routing
• Quick connect mechanism for easy cable installation
• Linear actuator for quick return speed
• Shortened insertion length
• Remote sold separately
• Usage: XC, Trail, Enduro

________
Specifications:

• Diameter Options: 27.2mm, 30.9mm, 31.6mm, 34.9mm

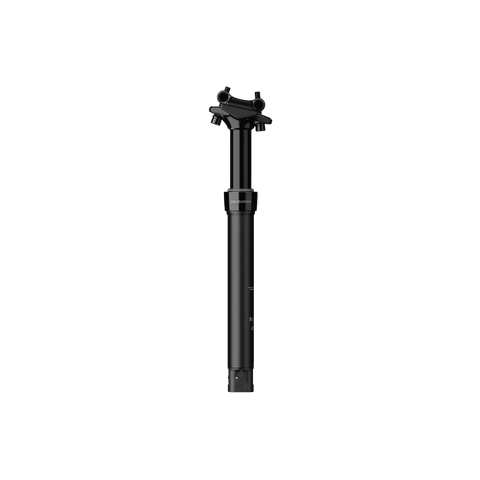

• Travel Options: 60mm, 80mm, 100mm, 125mm, 150mm, 170mm (varies by diameter)

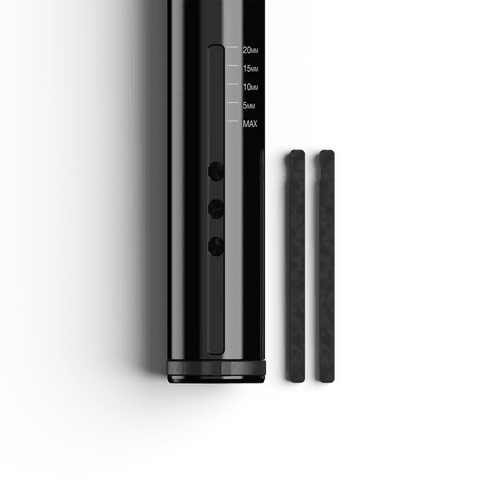

• Internal Travel Adjustment: Up to 20mm in 5mm increments
• Routing: Internal only
• Material: 7075-T6 aluminum
• Sealing: Premium Trelleborg
• Keys and Bushings: POM + 10% OF and POM + MoS2
• Cable and Housing: Jagwire
• Setback: 0mm
• Includes: Dropper post, cable, housing, housing caps, ferrule
• Warranty: 5 years
