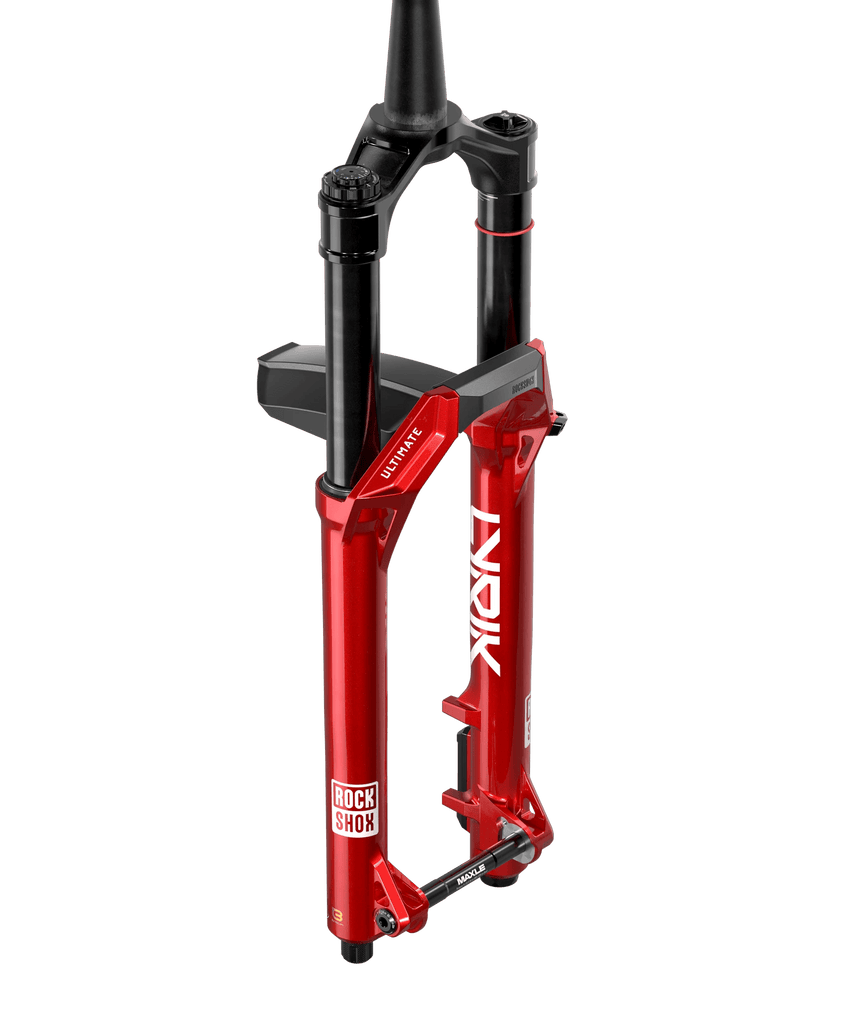

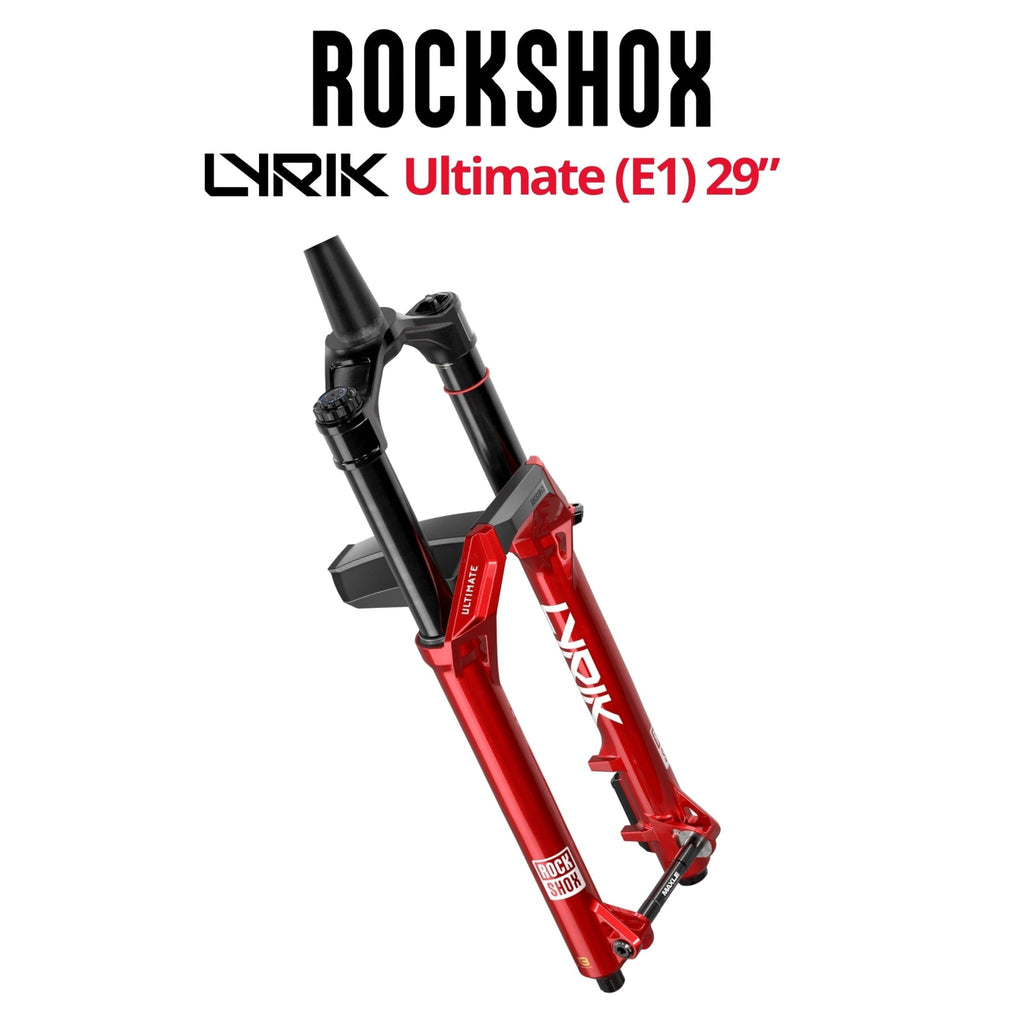

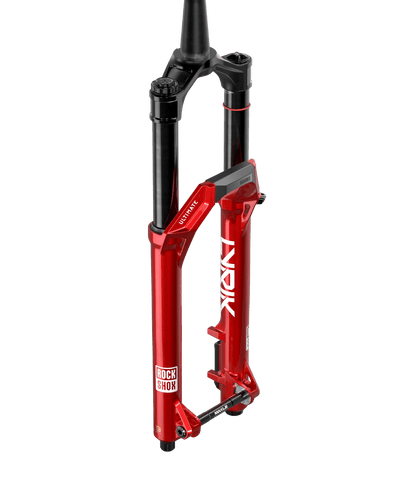

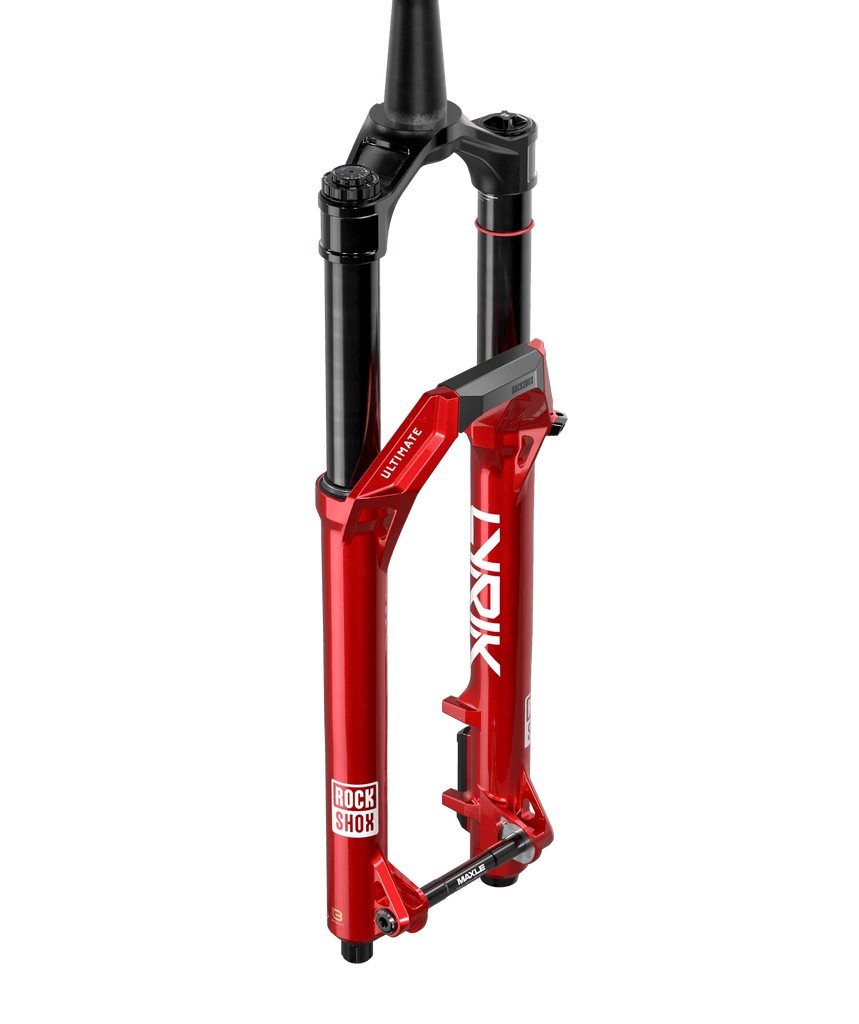

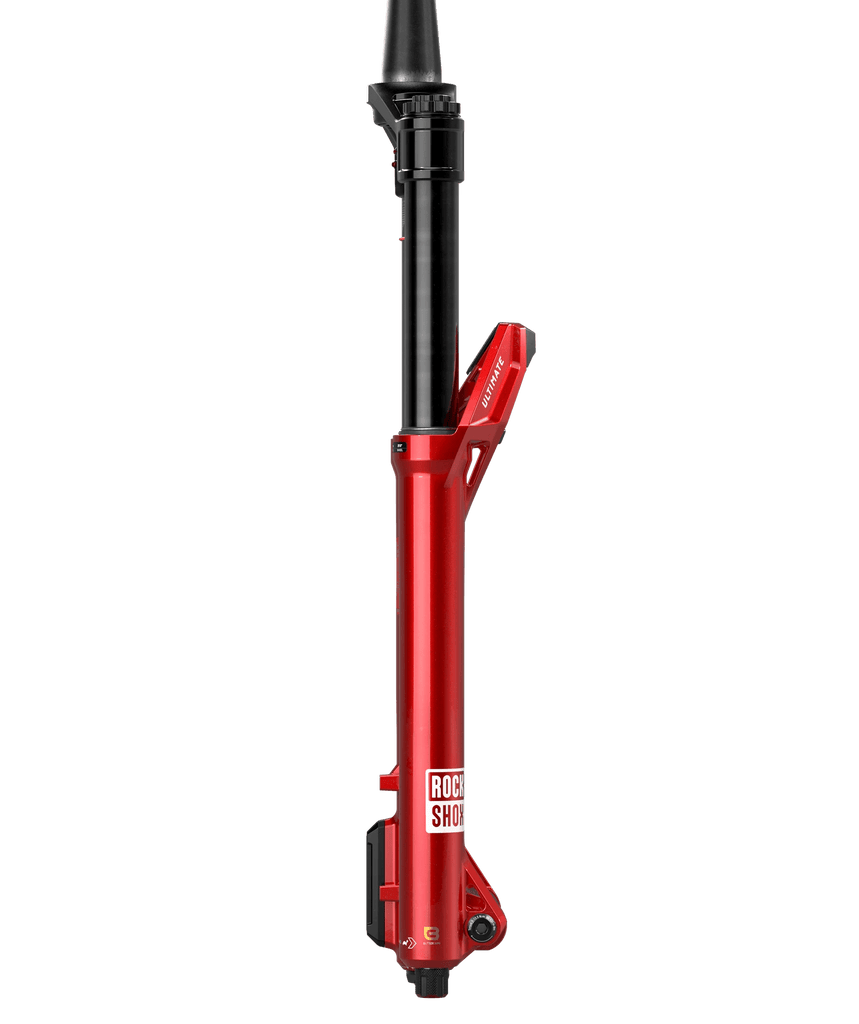

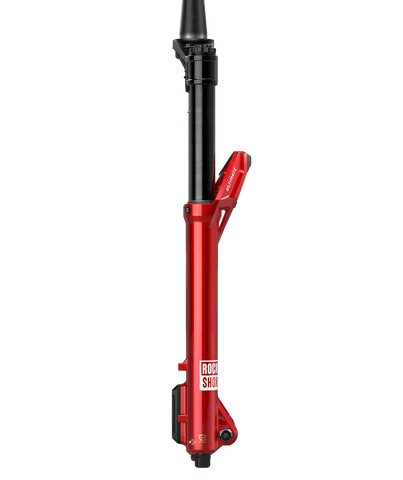

The undisputed king of the all-mountain category. The all NEW RockShox Lyrik Ultimate (FS-LYRK-ULT-E1) marries featherweight climbing efficiency with a ruthless appetite for the descent. At its core, the revolutionary LinearXL air spring utilizes expanded lower-leg volume to eliminate speed-sensitive harshness, delivering a hyper-predictable, coil-like plunge. To manage catastrophic impacts, the Adjustable Bottom Out (ABO) system grants you precise, independent end-stroke authority. Exclusive to the Ultimate tier, SRAM's proprietary ButterWagonTech utilizes a matrix of stanchion divots to continuously draw high-density Maxima oil into the bushings, slashing static friction by up to 24%. The fiercely independent circuits on the new Charger 3.2 damper eliminate cross-talk for surgical tuning, while integrated ButterCups mute high-frequency trail chatter by up to 20% to drastically reduce arm pump. Uncompromisingly versatile, the Lyrik stays terrifyingly composed on the gnarliest lines without penalizing you during an all-day pedal. Practical, hyper-capable, and always ready for the next drop.
________
Features:

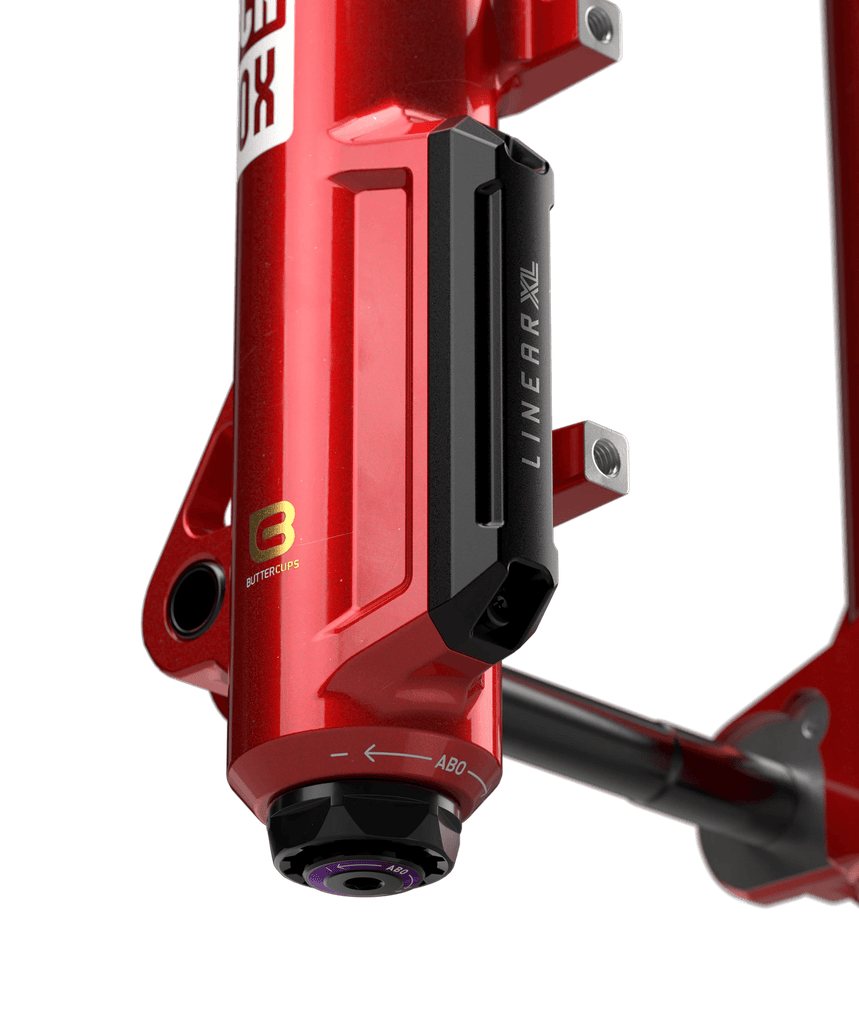

- NEW LinearXL air spring delivers a consistent and predictable ride feel backed by Adjustable Bottom Out (ABO) for end-stroke control
- NEW ButterWagonTech ensures a constant supply of oil to the bushings, reducing friction and maintaining smooth performance throughout the entire service interval

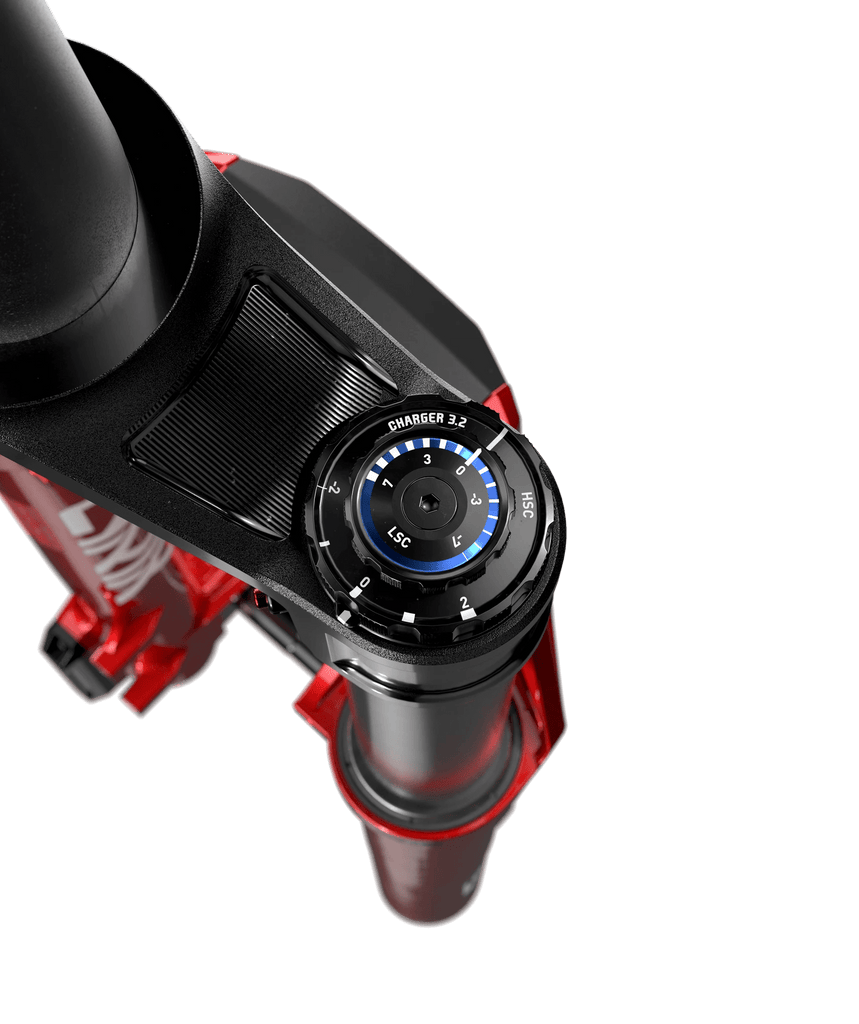

- NEW Charger 3.2 damper with new Rebound/Compression tunes that match LinearXL air spring, achieves virtually silent performance, keeping riders focused on the trail
- NEW Control bezel with numbered Compression adjuster for intuitive adjustments, start at "0" and easily add or decrease damping
- NEW Integrated short fender mount (Lyrik Integrated Fender included)
- NEW Graphics package, minimalist design, maximum impact
- ButterCups technology block 20% of high-frequency “trail chatter” to reduce hand and arm fatigue
- Low-grab SKF wiper seals deliver long-lasting fork performance and a smoother ride
- Maxima 920 blended 15w reduces overall fork friction
________
Specifications:
| WHEEL SIZE | 29" |
|---|---|
| TRAVEL (MM) | 140mm, 160mm |
| DAMPER TYPE | Charger 3.2 RC2 W/ButterCups |
| FORK OFFSET | 37mm (27.5"), 44mm (27.5"), 44mm (29") |
| COLOR (FS) | Electric Red - Gloss, Gloss Black |
| E-BIKE APPROVED | E-bike Approved, E-bike Approved w/E-MTB Decal |
| STEERER | 1.5" Tapered, 1.8" Tapered |
| AXLE | 15x110mm BOOST™ TC Compt |
| UPPER TUBE TYPE | 35mm tapered wall aluminum |
| DAMPER ADJUST | Crown |
| VOLUME REDUCER | 0/3 Tokens, 0/4 Tokens, 1/5 Tokens |
| SPRING | Linear XL W/ButterCup |
| MAX TIRE WIDTH (MM) | 70 |
| MAXIMUM ROTOR SIZE | 220mm |
| MINIMUM ROTOR SIZE | 180mm |
| FENDER COMPATIBILITY | Bolt On - Short (Use AC-FEN-AM-B1) |
| BOTTOM OUT | Externally Adjustable Bottom Out |
| COMPRESSION TUNE | C5, C7 |
| REBOUND TUNE | R55 |
