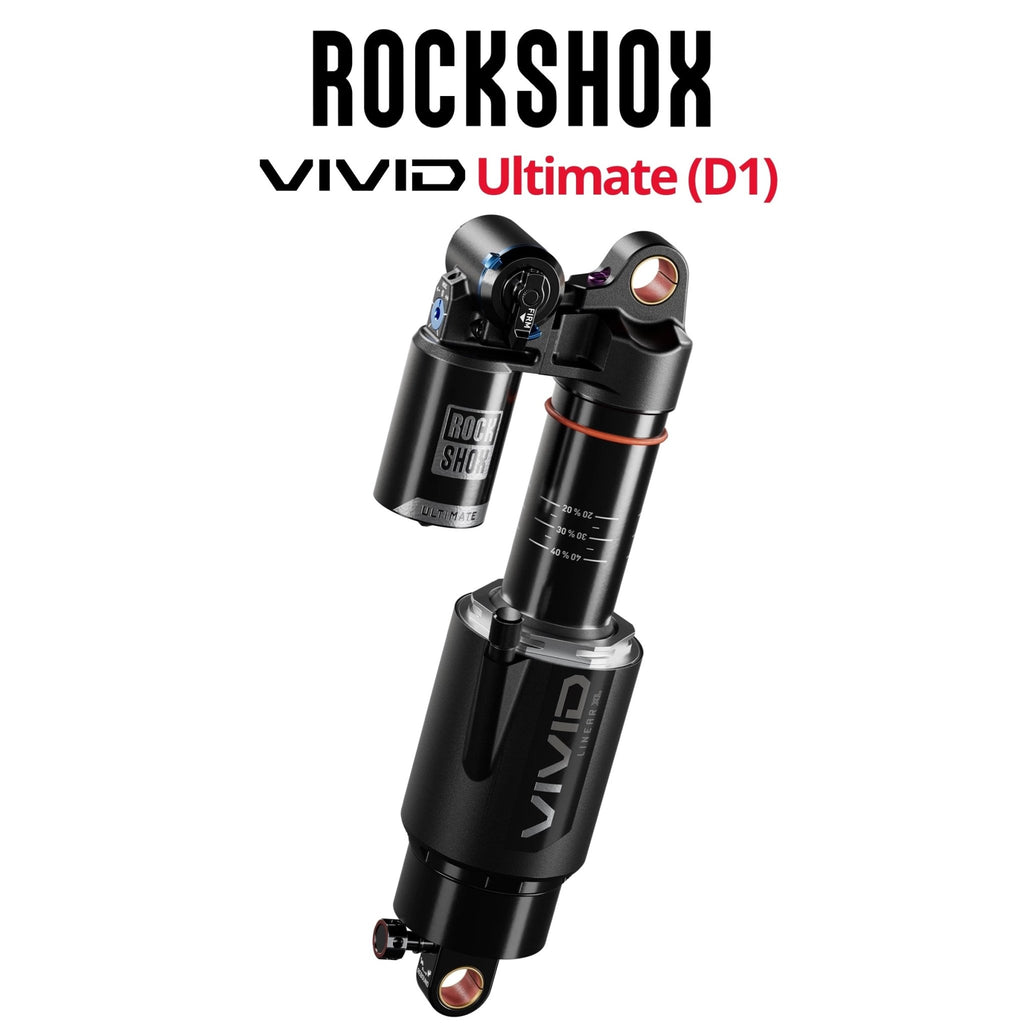

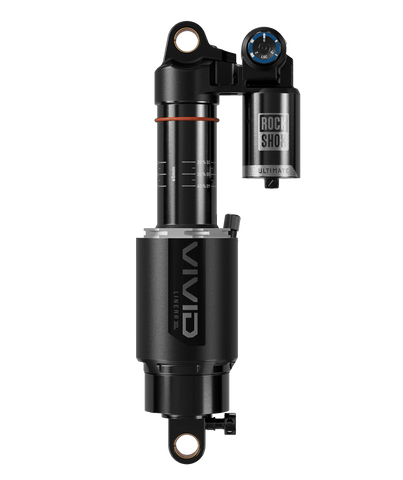

Forged in the crucible of World Cup racing, the NEW RockShox Vivid Ultimate RC2T (RS-VIVD-ULT-D1) establishes a terrifying new benchmark for gravity suspension. Its massive LinearXL air spring effectively erases the boundary between air and coi, delivering a hyper-supple breakaway that transitions seamlessly into a deeply supportive mid-stroke. When the impacts get really big, the 5-position Adjustable Bottom Out (ABO) dial grants you total end-stroke authority without compromising the rest of your travel. Engineered to perform in perfect synergy with your front end, the RC2T damper utilizes a reimagined main piston tune to perfectly mirror the mid-stroke support of the Charger 3.2 fork damper. With fiercely independent High and Low Speed Compression circuits, setup is precise, surgical, and entirely free of tuning cross-talk. Unapologetically oversized and built to wrangle everything from heavy-hitting E-MTBs to dedicated downhill sleds, the Vivid Ultimate completely rewrites the rules of the descent.
________
Features:
- NEW LinearXL air spring delivers a consistent and predictable ride feel tunable with easy-to-change bottomless tokens
- NEW RC2T damper providing a wide, usable range of Low Speed Compression (LSC) and High Speed Compression (HSC) adjustments without any cross-talk
- NEW Numbered Compression adjuster for intuitive adjustments—start at "0" and easily add or decrease damping
- NEW Base valve with 40% reduction in IFP forces, making it the most supple shock on the market while maintaining perfect traction
- NEW Main piston compression tunes matched in performance to the Charger 3.2 damper, focused on providing mid-stroke support
- Adjustable Bottom Out (ABO) offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel
- Removable Rebound knob doubles as HSC and ABO adjuster
- 20 clicks of Rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights
- 8x30 Bearing Adapter available for all standard eyelets, sold as an upgrade kit.
________
Specifications:
| EYE TO EYE / STROKE | 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75 |
|---|---|
| DAMPER TYPE | RC2T Adj. Hydraulic Bottom Out |
| REBOUND TUNE | R25, R55, R85 |
| COMPRESSION TUNE | C22, C26, C30, C34, C37, C40, C43, C46 |
| LOCKOUT FORCE | X05, X25, X45 |
| SHAFT EYELET | No Bushing, No Bushing - 270 Deg Rotation, No Bushing - 90 Deg Rotation, Standard, Standard - 180 Deg Rotation, Standard - 75 Deg Rotation, Standard - 90 Deg Rotation |

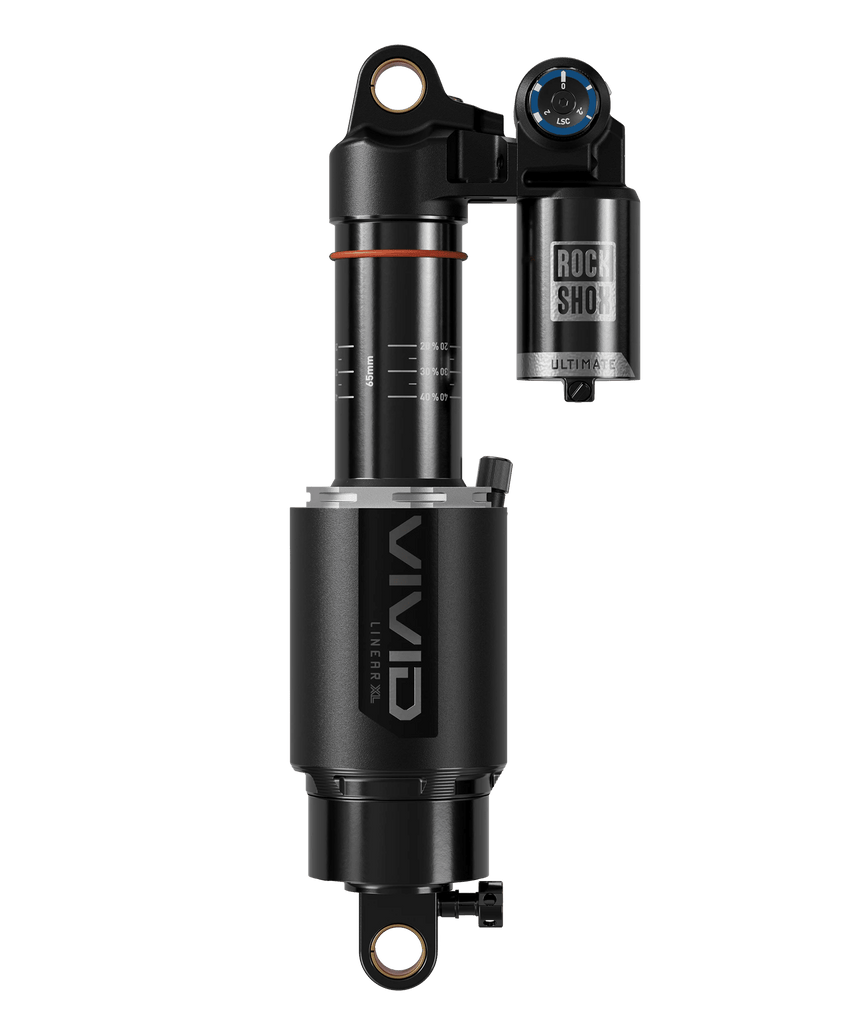

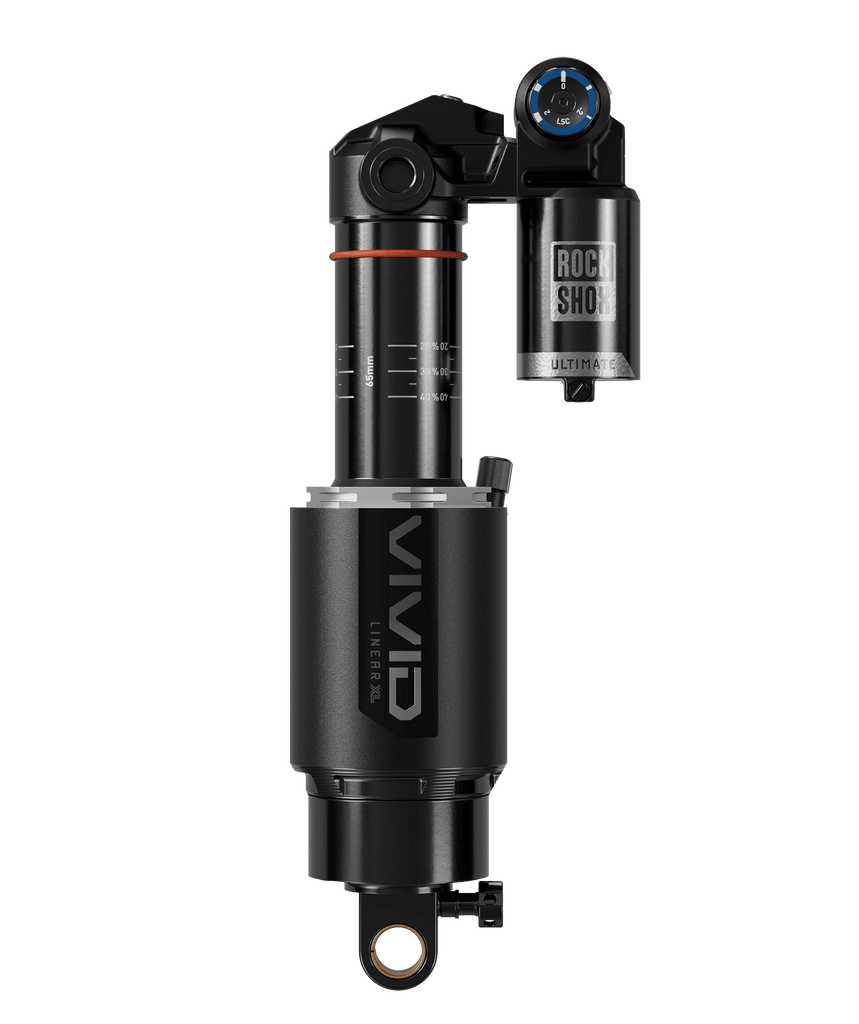

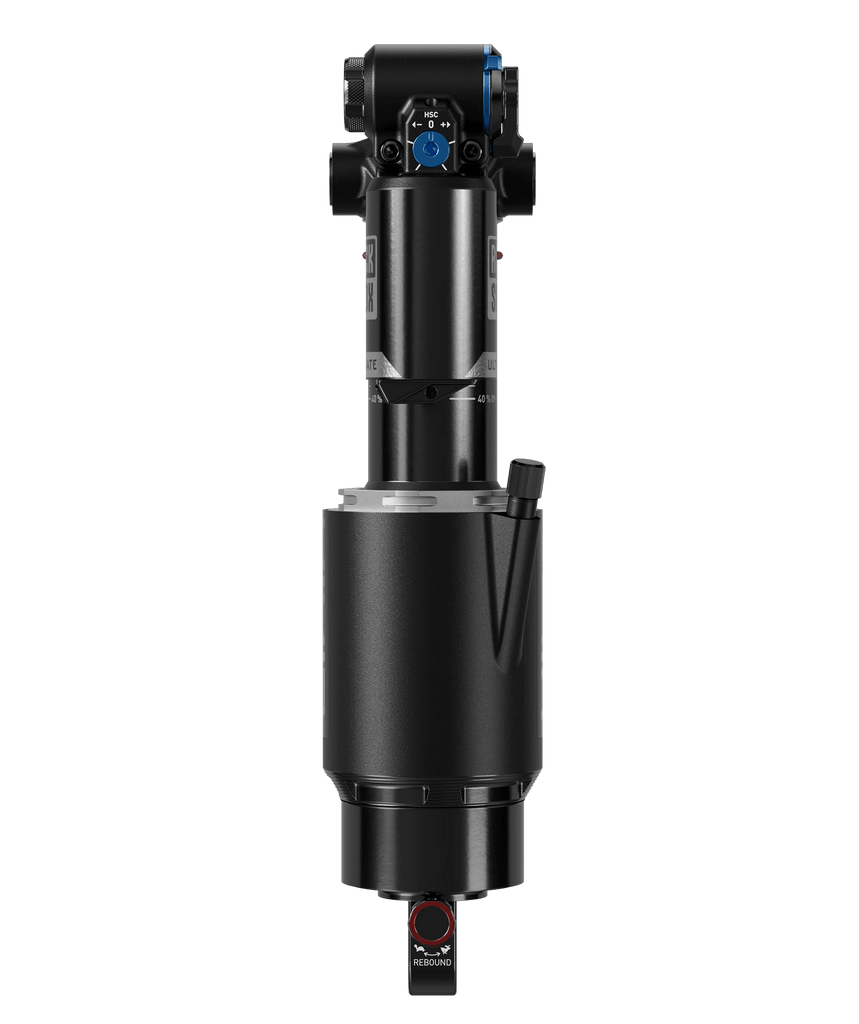

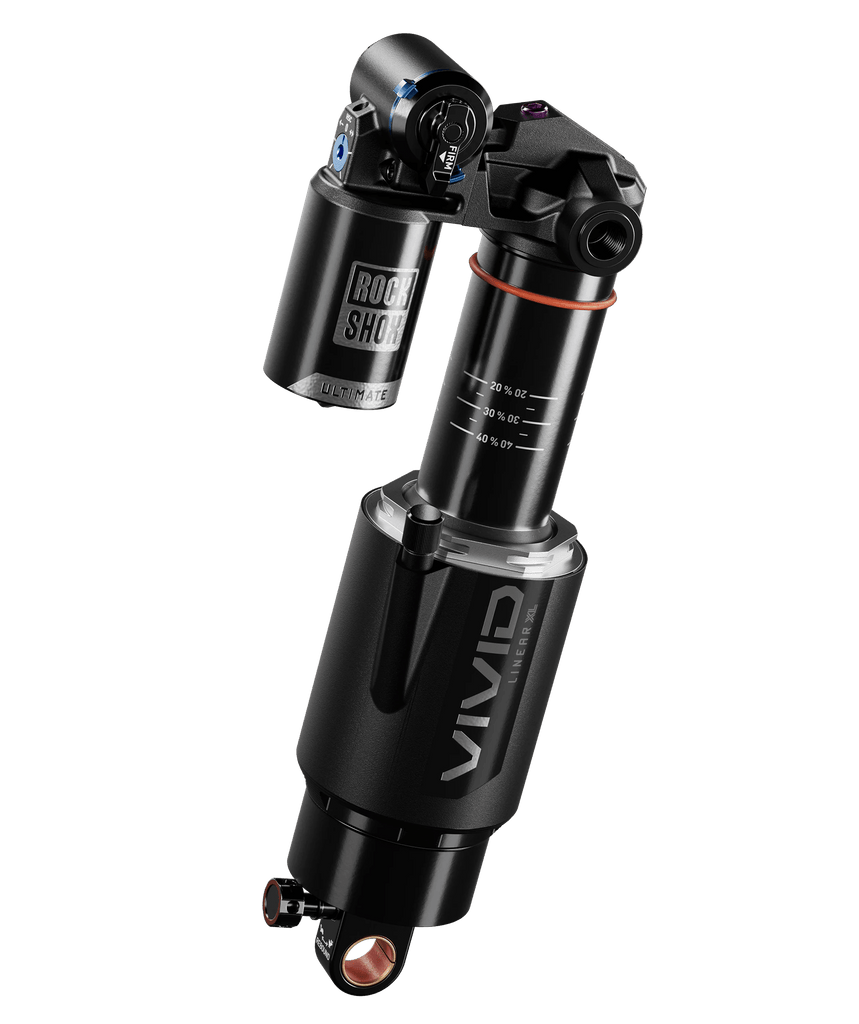

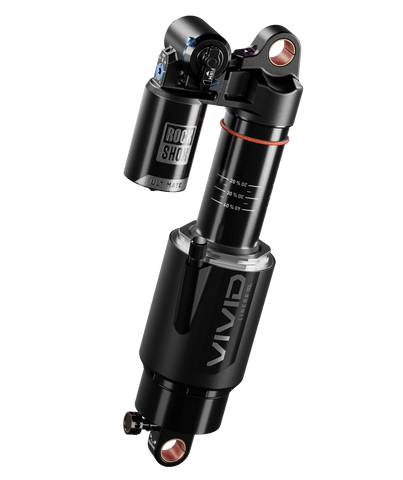

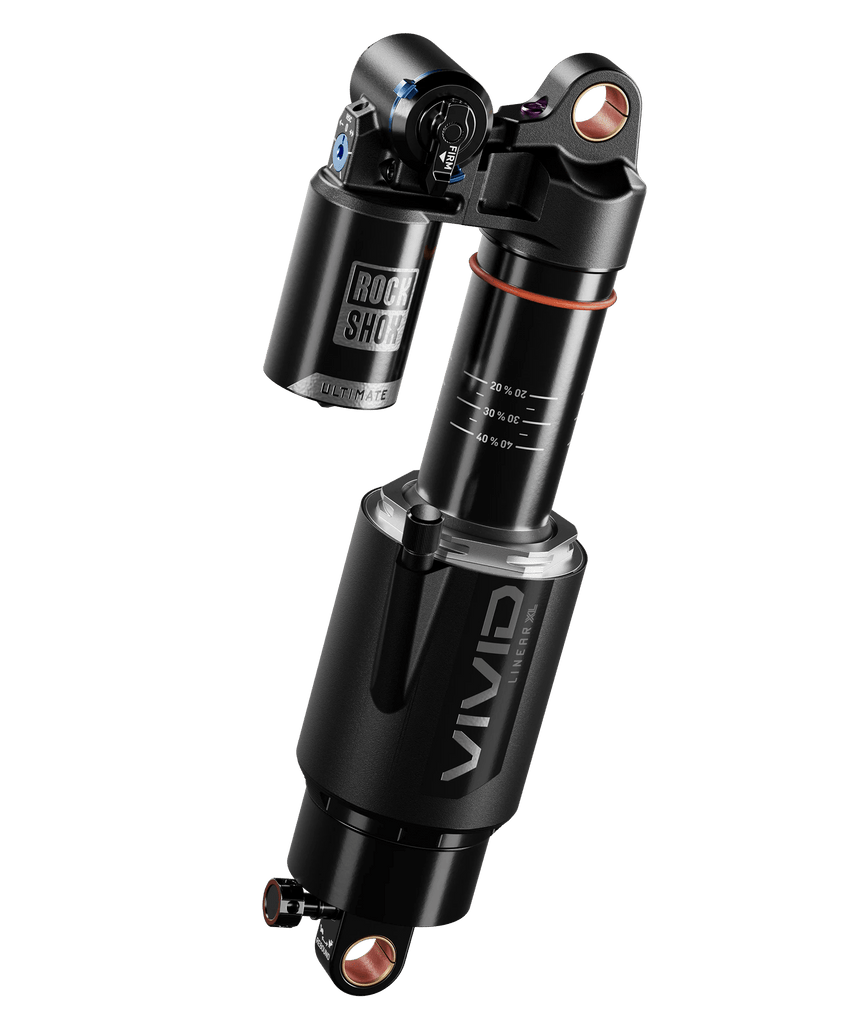

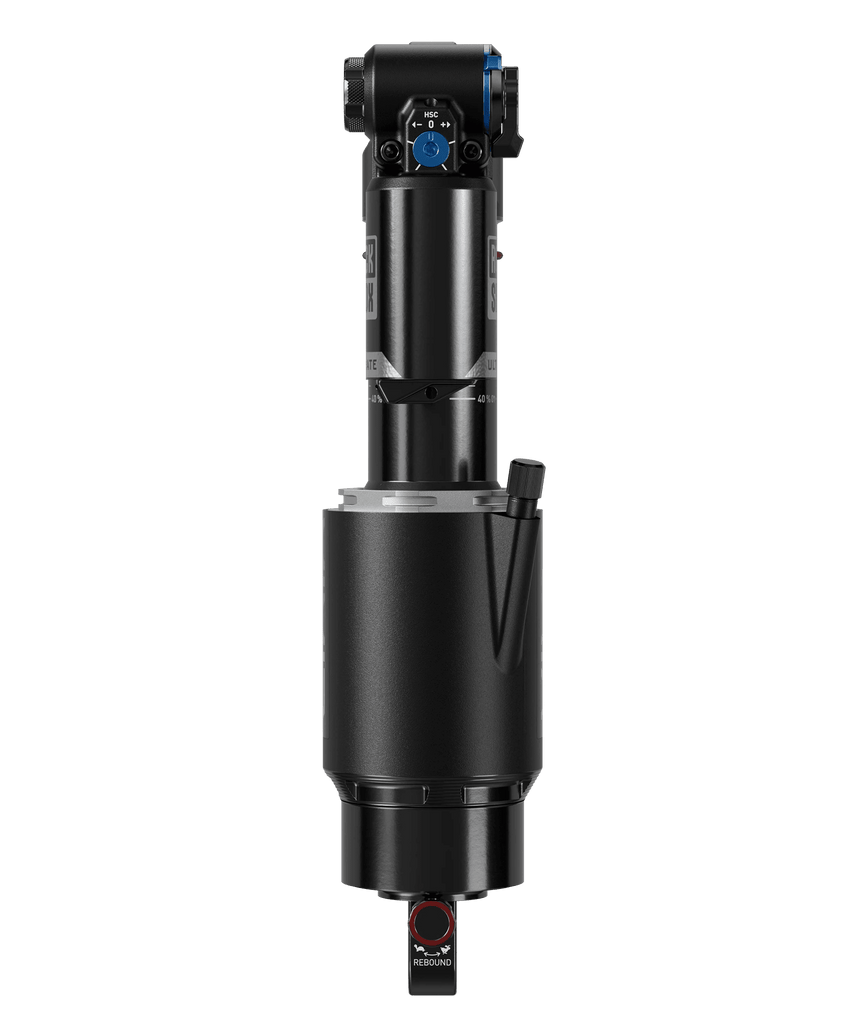

| BODY EYELET | No Bushing, Standard, Standard - 90 Deg Rotation, Trunnion |
| E-BIKE APPROVED | E-bike Approved |
| BOTTOM OUT | Externally Adjustable Bottom Out |
| HIGH SPEED TUNE | n/a |
