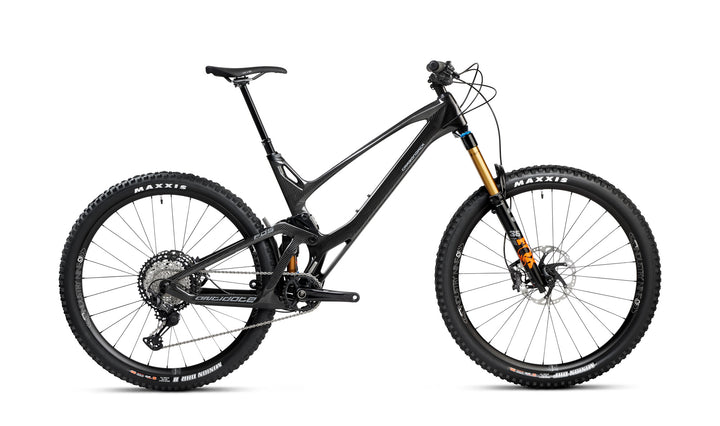

Antidote - Carbonjack

  • Sale
  • Regular price $8,833.95
Shipping calculated at checkout.



  • Antidote - Carbonjack

    Delivery time: about 14 weeks from paid order.

    Once an order placed we will contact the customer to discuss paint options.

    Winner of the Design & innovation Award 2021, the Antidote Bikes Carbonjack is an exceptional bike. The most unique aspect of the carbon frame, which is made by hand in Poland, is the distinct visible carbon finish which is unlike anything else in the industry. Antidote is also setting benchmarks with the design of the bike, combining a futuristic look with a high levels of functionality. Thanks to the low-slung top tube, the bike offers a huge amount of freedom of movement. The balanced geometry is perfectly tuned for high-speed descents. Antidote’s patented suspension results in a very capable enduro bike which communicates precise feedback from the ground without overwhelming the rider. The Antidote Carbonjack” isn’t just a beauty, it’s also incredibly fast and a worthy award winner!”

    Equipped with 150 mm travel, slack geometry and short rear, Carbonjack gives the rider perfect balance while blasting down the trails. An steep seat tube angle and pedal efficient suspension makes climbing easy, giving you even more energy for fun parts!

    The Antidote floating damping system is patented. No shock mounts in the front triangle or swingarm means better stress distribution. A simple and effective suspension design with unique shock access combined with lightweight and aggressive geometry will improve your riding skills dramatically, before you realize it!

    “Golden Ratio Geometry” is the best overall geometry that Antidote has ever designed. Why? Because the proportions between the front and rear triangles are most effective for the type of riding the Carbonjack is designed for. The special balance distribution between the „Front Center” to „Chainstay” means better rider mass distribution, it doesn’t matter whether you are climbing or descending. The new Carbonjack geometry gives the rider confidence to progress.

    ________
    Design Highlights:

    • FSD Suspension
      • Pedalling efficiency with no feedback
      • Superb small bump sensitivity
      • Excelent traction during technical climbs
      • Progressive suspension at home even on downhill tracks
      • Inline shock compression
    • Unique Shock Mount
      • Floating shock design
      • Easy shock access for adjustments
    • Low Center of Gravity
      • Superb cornering
      • Unmatched control on ground & in the air

    ________
    Paint Options:

    • RAW: Clear coat with standard decals: white, matte black or grey
      • Included
    • S-FIT: Clear coat with suspension matched stickers (Rock Shock, FOX, EXT)
      • Add $269.95
    • SUPERCOVE: Full painted, logos in RAW Carbon
      • Add $399.95
    • HALV: 50/50 mask painting, top part of the frame only
      • Add $469.95
    • STORMTROOPER OUTSIDE: Clear coat + outside mask painting
      • Add $469.95
    • STORMTROOPER INSIDE: Clear coat + inside mask painting
      • Add $469.95
    • CLIENT PERFORMANCE: "sky is the limit" fully custom paint
      • Contact Us

    ________
    Frame Details:

    • Wheel size: 29″
    • FDS Suspension
    • Rear Travel: 150 mm
    • Shock length: 210×55 mm
    • Recommended fork: 160-170 mm
    • Recommended fork offset: shortest available
    • BOOST 12x148mm rear spacing
    • Threaded BB, Press-fit available upon request
    • ISCG 05 Mount
    • 2.6″ tire clearance
    • Seatpost diamater: 30.9mm
    • Headset: Semi-integrated 1 1/8” – 1,5” (ZS – 44,00mm x 55,95mm)
    • Material: Monocoque Carbon & Vectran Composite
    • Bolts: Ti & Aerospace aluminium alloys
    • Links: 7075 T6 Anodized CNC
    • MAX LLU all bearings
    • Integrated seatpost clamp
    • Custom Flat/PM 180 or 203 mm brake adapter
    • Lifetime warranty for first owner
    • Sizes: S, M, L, XL

    ________
    Builds:

    BUILD KIT Fox 36 & X2
    Shimano XT
    EXT Era & Storia Lok V3
    Shimano XT
    Ohlins RXF & TTX 22 Cust.
    Shimano XT
    Fox 36 & X2
    SRAM X01
    EXT Era & Storia Lok V3
    SRAM X01
    Ohlins RXF & TTX 22 Cust.
    SRAM X01
    Frame Carbonjack FDS Suspension, 150 mm travel, Boost Carbonjack FDS Suspension, 150 mm travel, Boost Carbonjack FDS Suspension, 150 mm travel, Boost Carbonjack FDS Suspension, 150 mm travel, Boost Carbonjack FDS Suspension, 150 mm travel, Boost Carbonjack FDS Suspension, 150 mm travel, Boost
    Fork Fox 36 Factory Grip2 160 mm EXT Era V2 160 mm Ohlins RXF36 m.2 160 mm Fox 36 Factory Grip2 160 mm EXT Era V2 160 mm Ohlins RXF36 m.2 160 mm
    Rear Shock Fox Float X2 Factory 210×55 mm EXT Storia Lok V3 210x55mm Ohlins TTX22M Custom 210×55 mm Fox Float X2 Factory 210×55 mm EXT Storia Lok V3 210x55mm Ohlins TTX22M Custom 210×55 mm
    Wheels Industry Nine Enduro S Hydra 15×110 / 12×148 mm Industry Nine Enduro S Hydra 15×110 / 12×148 mm Industry Nine Enduro S Hydra 15×110 / 12×148 mm Industry Nine Enduro S Hydra 15×110 / 12×148 mm Industry Nine Enduro S Hydra 15×110 / 12×148 mm Industry Nine Enduro S Hydra 15×110 / 12×148 mm
    Deraileur Shimano XT RD-M8100 SGS Shimano XT RD-M8100 SGS Shimano XT RD-M8100 SGS SRAM X01 Eagle SRAM X01 Eagle SRAM X01 Eagle
    Shifter Shimano XT SL-M8100 Shimano XT SL-M8100 Shimano XT SL-M8100 SRAM X01 Eagle SRAM X01 Eagle SRAM X01 Eagle
    Casette Shimano XT CS-M8100 10-51T 12s Shimano XT CS-M8100 10-51T 12s Shimano XT CS-M8100 10-51T 12s SRAM XG-1295 10-52T 12s SRAM XG-1295 10-52T 12s SRAM XG-1295 10-52T 12s
    Chain Shimano SLX CN-M7100 Shimano SLX CN-M7100 Shimano SLX CN-M7100 SRAM GX Eagle SRAM GX Eagle SRAM GX Eagle
    Crankset/Chainring Shimano XT FC-M8120 32T Shimano XT FC-M8120 32T Shimano XT FC-M8120 32T SRAM X01 Eagle 32T SRAM X01 Eagle 32T SRAM X01 Eagle 32T
    Bottom Bracket Shimano BB-MT800-PA Shimano BB-MT800-PA Shimano BB-MT800-PA SRAM DUB SRAM DUB SRAM DUB
    Brakes Shimano XT BL-M8100/BR-M8120 4-pistons Shimano XT BL-M8100/BR-M8120 4-pistons Shimano XT BL-M8100/BR-M8120 4-pistons SRAM CODE RSC SRAM CODE RSC SRAM CODE RSC
    Rotors Shimano SM-RT86 203 mm Shimano SM-RT86 203 mm Shimano SM-RT86 203 mm SRAM Centerline 200 mm SRAM Centerline 200 mm SRAM Centerline 200 mm
    Seatpost BikeYoke Revive 2.0 M-160mm, L, XL-185mm BikeYoke Revive 2.0 M-160mm, L, XL-185mm BikeYoke Revive 2.0 M-160mm, L, XL-185mm BikeYoke Revive 2.0 M-160mm, L, XL-185mm BikeYoke Revive 2.0 M-160mm, L, XL-185mm BikeYoke Revive 2.0 M-160mm, L, XL-185mm
    Handlebar Antidote 35 mm width 810mm Antidote 35 mm width 810mm Antidote 35 mm width 810mm Antidote 35 mm width 810mm Antidote 35 mm width 810mm Antidote 35 mm width 810mm
    Stem Industry Nine Industry Nine Industry Nine Industry Nine Industry Nine Industry Nine
    Tires Maxxis Minion DHF 29×2,5WT DoubleDown /MInon DHR II 2,4WT Double Down Maxxis Minion DHF 29×2,5WT DoubleDown /MInon DHR II 2,4WT Double Down Maxxis Minion DHF 29×2,5WT DoubleDown /MInon DHR II 2,4WT Double Down Maxxis Minion DHF 29×2,5WT DoubleDown /MInon DHR II 2,4WT Double Down Maxxis Minion DHF 29×2,5WT DoubleDown /MInon DHR II 2,4WT Double Down Maxxis Minion DHF 29×2,5WT DoubleDown /MInon DHR II 2,4WT Double Down
    Saddle WTB Silverado Cromoly WTB Silverado Cromoly WTB Silverado Cromoly WTB Silverado Cromoly WTB Silverado Cromoly WTB Silverado Cromoly
    Headset CaneCreek 40 ZS44/ZS56 CaneCreek 40 ZS44/ZS56 CaneCreek 40 ZS44/ZS56 CaneCreek 40 ZS44/ZS56 CaneCreek 40 ZS44/ZS56 CaneCreek 40 ZS44/ZS56
    Grips WTB Wafel WTB Wafel WTB Wafel WTB Wafel WTB Wafel WTB Wafel

    ________
    Geometry:

    Size  S M L XL
    Seat Tube Length A 420 440 470 500
    Top Tube Length Horizontal B 590,5 610,5 641 671,5
    Head Tube Length C 100 100 115 130
    Seat Tube Angle Horizontal D 75,5° 75,5° 75,8° 76°
    Seat Tube Angle Effective E 75° 74,5° 74,6° 74,7°
    Seat Tube Reach F 183 202 214 228
    Head Tube Angle G 65° 65° 65° 65°
    Chainstay Length H 450 450 450 450
    Front Center I 753 773 809 846
    Wheelbase J 1203 1223 1259 1293
    Reach K 430 450 480 510
    Stack L 621 621 634 648
    Spread M 755 766,6 795,4 824,5
    BB Drop N 32 32 32 32
    BB Height O 344 344 344 344
    Fork Offset U 44 44 44 44
    Estimated seat height 680 740 780 830
    Recomended frame size S M L XL
    Rider Height (cm) 162-171 169-179 177 – 189 187 -198
    Recomended seatpost S M L XL
    Seat post insert 195 215 245 275
    Model: 120-150 150-180 180-210 210-250
    Oneup V2 120/150* 150/180* 180/210* 210
    Bike Yoke 125 160 185 185
    *if You use longer option, it may require reduce travel
