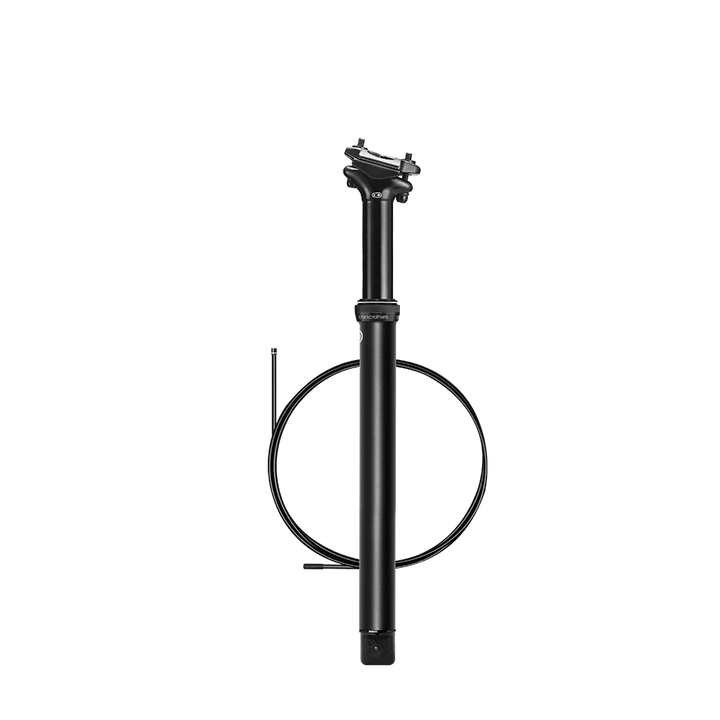

Crankbrothers Highline 3 Dropper Post

  • % off
  • Regular price $210.95

Ships FAST from Canada šŸ‡ØšŸ‡¦
EASY 30-day returns
Orders over $150 ship FREE
Visa Mastercard American Express Diners Club Discover Apple Pay Google Pay Shop Pay

The all-new Crankbrothers Highline 3 dropper post offers infinite adjustment, a smooth feel, and effortless installation, making it a versatile choice for any bike.

________
Features:

  • Premium TrelleborgĀ® sealing
  • Exclusive IgusĀ® LL-glide bearings and keys
  • JagwireĀ® cable and housing
  • Self-contained hydraulic cartridge delivers industry leading quality and reliability
  • Internal routing
  • Quick connect mechanism for ease of cable installation
  • Linear actuator for quick return speed
  • 2-bolt standard head
  • Lever sold separately - can be purchased HERE
  • Usage: Enduro, Trail, XC

________
Specifications:

  • Travel Options: 80mm, 100mm, 125mm, 150mm, 170mm
  • Diameter Options: 30.6mm, 31.6mm, 34.9mm
  • Routing: InternalĀ
  • Material: 7075-T6 aluminium
  • Warranty: 2 years
Crank Brothers Highline 3
A Travel: 80mm 100mm 125mm 150mm 170mm 200mm
B Min. Insertion Length: 100mm 100mm 100mm 100mm 100mm 100mm
C Max. Insertion Length: 285mm 220mm 245mm 270mm 285mm 319mm
D Min. Extended Length: 125mm 146mm 172mm 195mm 216mm 245mm
E Max. Extended Length: 283mm 239mm 290mm 338mm 374mm 442mm
F Total Post Length: 410mm 366mm 417mm 465mm 501mm 569mm
