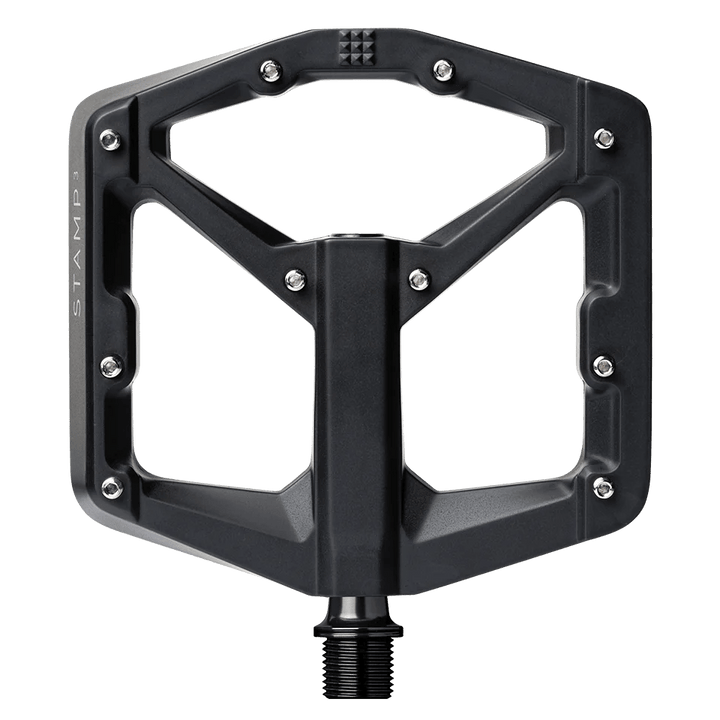

Crankbrothers Stamp 3 Pedals

  • Sale
  • Regular price $132.95

Ships FAST from Canada šŸ‡ØšŸ‡¦
EASY 30-day returns
Orders over $150 ship FREE
Visa Mastercard American Express Diners Club Discover Apple Pay Google Pay Shop Pay

Available in two sizes, the Crankbrothers Stamp 3 magnesium platform pedal provide an optimal shoe/pedal interface.Ā Ideal for Downhill, Enduro and Trail riding.

________
Specifications:

  • Magnesium pedal body for weight reduction
  • Optimal surface area
  • Minimal body profile - 16mm thin
  • Concave body & 10 adjustable pins per side for grip
  • Premium bearings & seal system
  • Stamp small recommended for shoe sizes: 5-10 (us) // 37-43 (eu)
  • Stamp large recommended for shoe sizes: 10-15 (us) // 43-49 (eu)
  • Serviceable with a pedal refresh kitĀ

BODY MATERIAL: AM60B Magnesium Alloy
FOOTPRINT: Large - 114mm x 111mm, Small - 100mm x 100mm
TRACTION PINS: 10 adjustable per side
PIN LENGTH: 10mm
INNER BEARING TYPE: Igus Bearing
OUTER BEARING TYPE: Double Cartridge Bearing
ENDCAP: T15
SPINDLE MATERIAL: Forged SCM 415 Chromoly Steel
MAX RIDER WEIGHT: No restriction
WEIGHT: Large - 386g per pair, Small - 351g per pair
WARRANTY: 5 years
