SRAM Disc Brake Mount Adapters for mounting disc brake calipers onto a bike frame or fork. These adapters enable the use of 160mm, 180mm, 203mm or 220mm rotors on most Postmount frame/fork combinations.
________
Forks & Frames with 140mm Post mount:

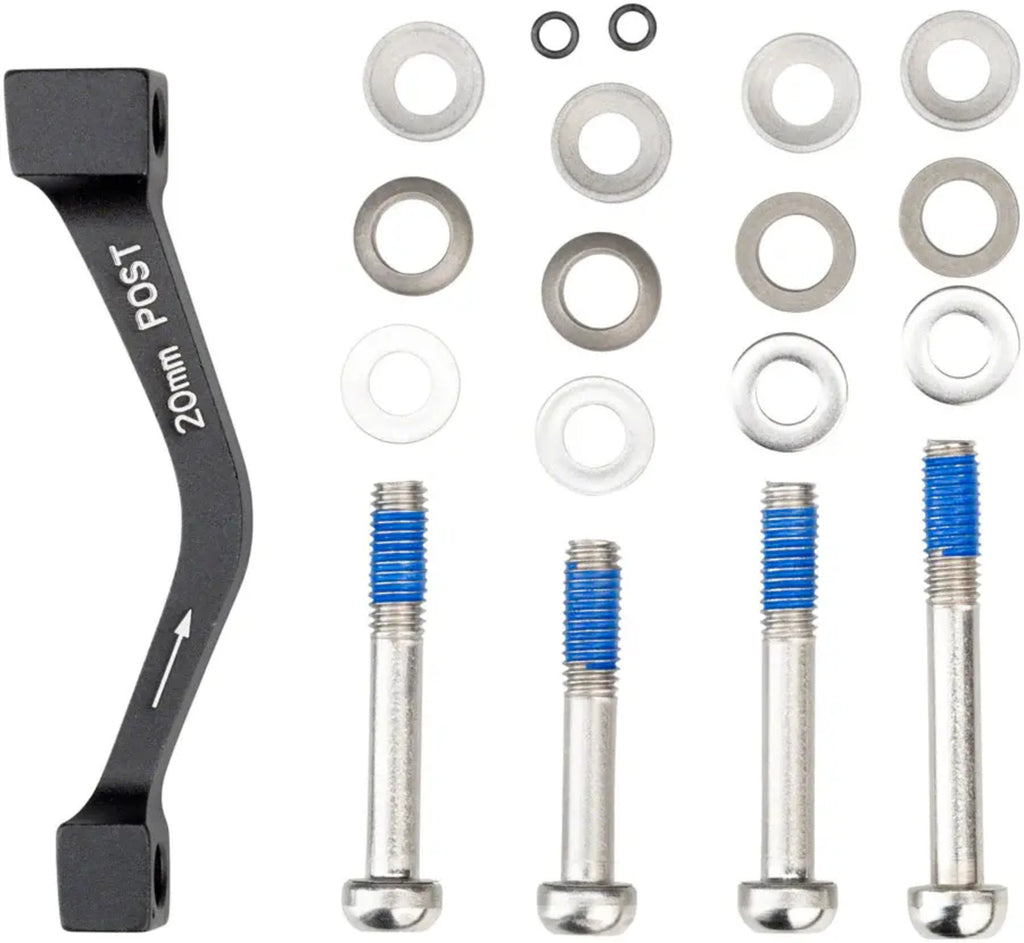

160mm rotor use: 20 P (Front 180mm/Rear 160mm)
00.5318.007.005 - Rainbow Bolts
00.5318.007.004 - Stainless Steel Bolts

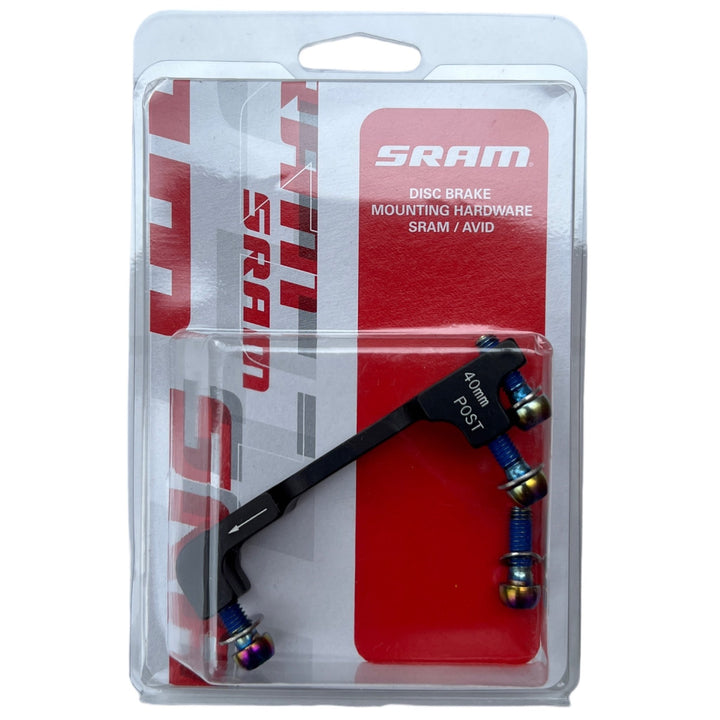

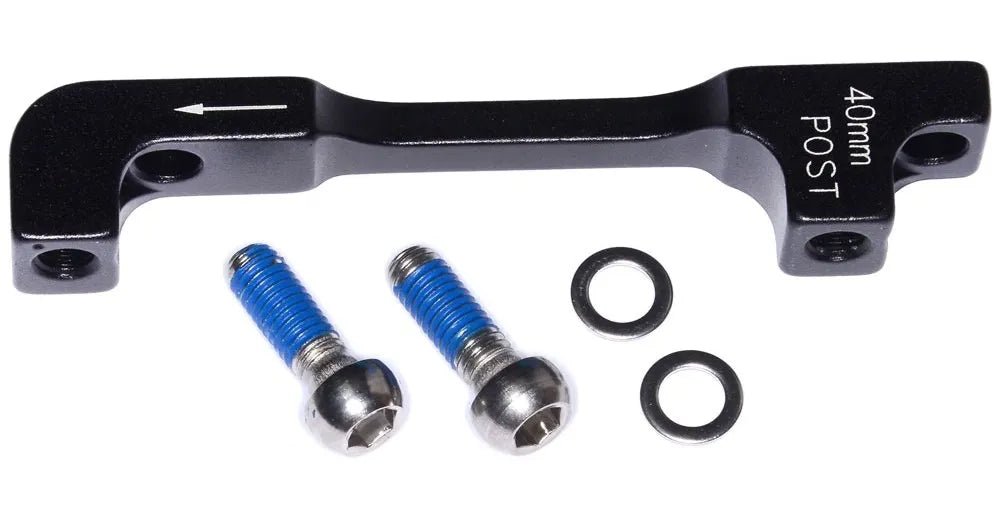

180mm rotor use: 40 P (Front 200mm/Rear 180mm)
00.5318.007.006 - Rainbow Bolts
00.5318.007.003 - Stainless Steel Bolts
Forks & Frames with 160mm Post mount:
160mm rotor use: NO ADAPTER
180mm rotor use: 20 P (Front 180mm/Rear 160mm)
00.5318.007.005 - Rainbow Bolts
00.5318.007.004 - Stainless Steel Bolts
200mm rotor use: 40 P (Front 200mm/Rear 180mm)
00.5318.007.006 - Rainbow Bolts
00.5318.007.003 - Stainless Steel Bolts
Forks & Frames with 180mm Post mount:
180mm rotor use: NO ADAPTER
200mm rotor use: 20 P (Front 180mm/Rear 160mm)
00.5318.007.005 - Rainbow Bolts
00.5318.007.004 - Stainless Steel Bolts
220mm rotor use: 40 P (Front 200mm/Rear 180mm)
00.5318.007.006 - Rainbow Bolts
00.5318.007.003 - Stainless Steel Bolts
Frames with 203mm Post mount:
203mm rotor use: NO ADAPTER
220mm rotor use: 17 P (Rear 220mm) 00.5318.007.008
NOTE: DO NOT use for front, not compatible with 203mm fork pots mount
