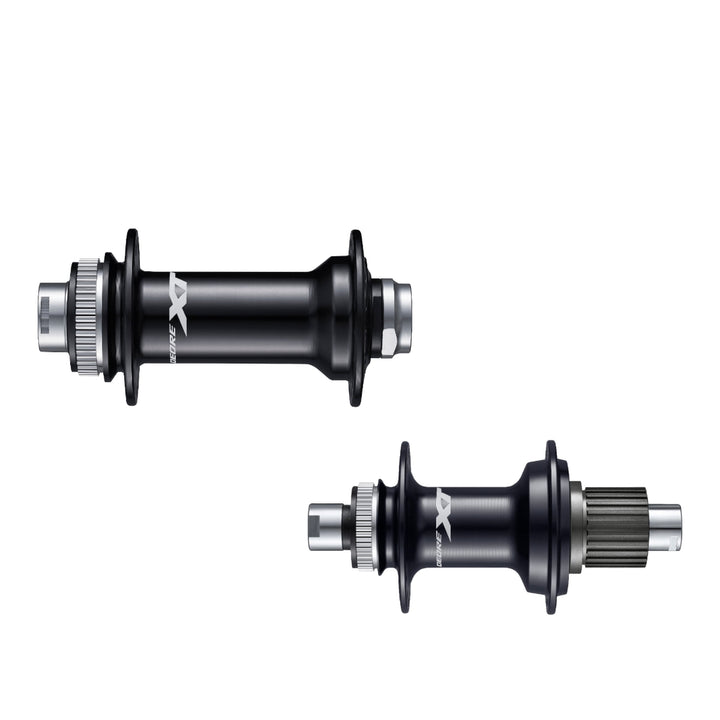

Shimano XT M8110 Hubs - 32H, MICRO SPLINE, 12s, THRU Axle, Boost/Std

  • Sale
  • Regular price $162.95

Ships FAST from Canada ūüá®ūüá¶
EASY 30-day returns
Orders over $150 ship FREE
Visa Mastercard American Express Diners Club Discover Apple Pay Google Pay Shop Pay

Ships FREE from Canada, with Canada Post

Shimano Deore XT Hub(s) - M8100 Series, MICRO SPLINE
32 holes, E-THRU Axle - Front, Rear or Set

Front: 110x15mm / 100x15mm (147g / 142g)
Rear: 148x12mm / 142x12mm (307g / 305g)

(Boost / Standard)

The latest Shimano XT hubs are here, and they offer not only all of Shimano's latest racing innovations, but also choices.

  • MICRO SPLINE rear hub¬†pairs with Shimano's latest 12s drivetrains and sprockets as small as 10T
  • CENTER LOCK spline mount enables quicker, easier and more precise disc brake rotor installation and results in a more rigid and efficient braking system
  • Quick Engagement¬†boasts a max 7.0 degree rotation before engaging the drivetrain and delivers the best possible traction on the toughest trails
  • E-THRU Axle with¬†Labyrinth & Contact Sealing saves weight, increases rigidity and performs optimally in even the most unfavourable conditions


    HB-M8110-B 32H - Front Hub - 110mm x 15mm (Boost)
    HB-M8110 32H - Front Hub - 100mm x 15mm
    32 spoke holes, 5.7mm Offset
    44/44 P.C.D. (Pitch Circle Diameter)

    FH-M8110-B 32H - Rear Freehub - 148mm x 12mm (Boost)
    32 spoke holes, 6.6mm Offset
    60/61 P.C.D. (Pitch Circle Diameter)

    FH-M8110 32H - Rear Freehub - 142mm x 12mm
    32 spoke holes, 6.72mm Offset
    61/61 P.C.D. (Pitch Circle Diameter)

    Our thoughts:
    Keep in mind this is a THRU Axle hub and your frame needs to be compatible with one, while your disc brake rotors must have a CENTER LOCK mount.

    If you're looking for something with a quick release skewer for a 135mm rear, try this Shimano MICRO SPLINE QR hub. (link opens new tab)

    Not to be confused with:
    Deore XT 8110 Straight Spoke Hubs (FH-M8110-BS and HB-M8110-BS)
    Deore XT 8110 SuperBoost Hub (FH-M8130-B)



    COMPATIBILITY - Shimano Rear Drivetrain Products

    COMPATIBILITY - Shimano Front Drivetrain Products
